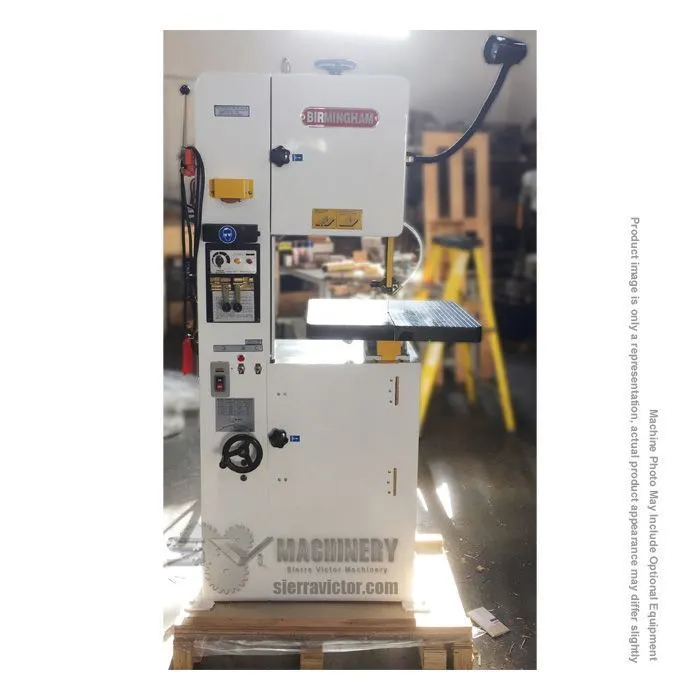

The BIRMINGHAM KB-36 Vertical Metal Cutting Band Saw has a saw blade butt welder with integrated annealing unit and a brush for cleaning lower drive wheel. It also has a low voltage working lamp.
| Throat Depth | 14" | 355.6 mm |
| Max. Work Height | 9.0625" | 230.19 mm |
| Blade Length | 111-13/16 in. | 111-13/16 in. |
| Blade Width | 3-16mm | 3-16mm |
| Saw Blade Speeds | 65-295 fpm (20-90m/min) | 65-295 fpm (20-90m/min) |
| Table Size | 19-1/2 x 15-1/4 in. | 19-1/2 x 15-1/4 in. |
| Table inclination (4 ways) | 15° | 15° |
| Butt Welder Capacity | 1/8 - 5/8 in. (2.4 KVA 3-16mm) | 1/8 - 5/8 in. (2.4 KVA 3-16mm) |
| Motor | 1 HP | 1 HP |
| Power | 110v, 1-phase | 110v, 1-phase |
| Net Weight | 540 lb | 244.9 kg |
| Gross Weight | 638 lb | 289.4 kg |
| Dimensions | 37-3/16 x 22 x 72-13/16 in. | 37-3/16 x 22 x 72-13/16 in. |
| Weight | 683 | 683 |
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional item - Call for price:
* Rip Fence for straight, repeated cuttings easily removable for varied sizes
* Miter protractor for angular cutting
* Electro-magnetic switch and overload protection
* Groove Table
