| Lathe Type | Geared Head | Geared Head |
| Swing Over Bed | 13" | 330.2 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Nose | D1-4 Camlock | D1-4 Camlock |
| Range Of Speeds | 40-2,000 rpm | 40-2,000 rpm |
| Number of Inch Threads | 2-56 tpi | 2-56 tpi |
| Motor | 3 hp | 2.2 kW |
| Phase | 3 | 3 |
| Voltage | 220/440v | 220/440v |
| Dimensions | 6.19' x 1.68' x 3.81' | 6.19' x 1.68' x 3.81' |
| Weight | 1,550 lbs. | 1,550 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

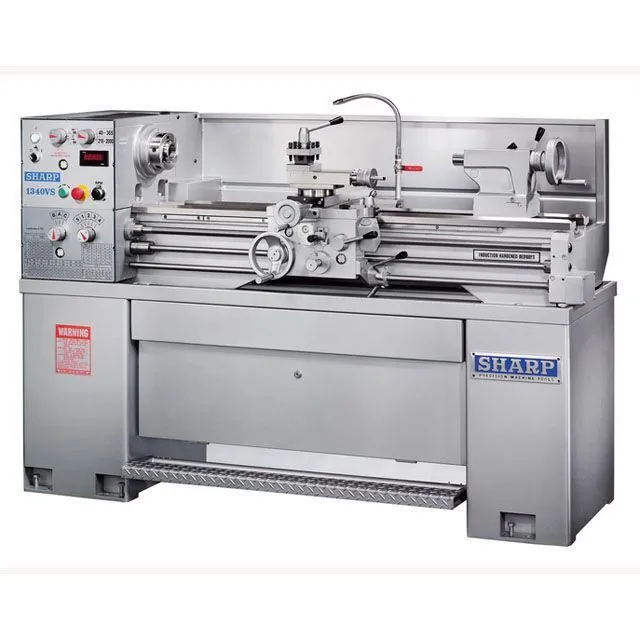

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
3-jaw chuck , different sizes
4-jaw chuck, different sizes
Chuck guard w/ limit switch
Follow rest
Roller jaw set for steady rest
Taper attachment
Quick change tool holder set (7 pcs. Holder)
Live center – MT#3
Drill and arbors
Face plate (12")
4-way carriage stop
Micrometer carriage stop safety cover on end of spindle
Halogen work light
tool guard (at front of compound slide with limit switch)
Lead screw cover (accordion style)
5C collet set (1/8" to 1-1/16" by 1/16") 16 pcs.
5C lever collet closer
