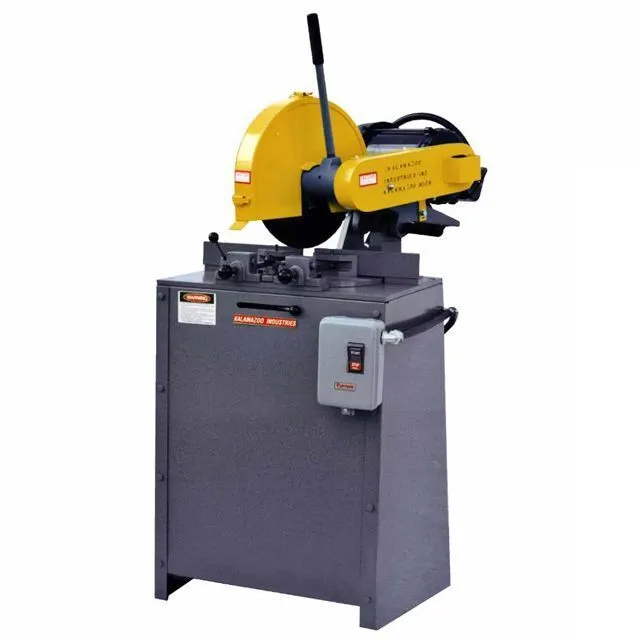

The operator can efficiently cut mild steel with the right cutoff wheel and will cut mild steel fast with the Kalamazoo KM14-3 14 inch industrial mitre chop saw. Has a powerful 5HP 1PH or 3PH motor, dual cam lock vises, 4400 RPM at the spindle, a 1" spindle arbor, and a steel stand.
| Capacity - Solids | 2.5" | 63.5 mm |
| Capacity - at 45° | 2.3" | 58.42 mm |
| Capacity - Pipe | 3" | 76.2 mm |
| Abrasive Wheel Size | 14" | 355.6 mm |
| Power | 5 hp | 3.7 kW |
| Phase | 3-Phase | 3-Phase |
| Voltage | 230V or 460V (specify) | 230V or 460V (specify) |
| Amperage | 11.8 amps (230V) / 5.9 amps (460V) | 11.8 amps (230V) / 5.9 amps (460V) |
| Spindle Arbor | 1 in. | 1 in. |
| Spindle Speed | 4400 RPM | 4400 RPM |
| Dimensions | L 43 x W 45 x H 63 in. | L 43 x W 45 x H 63 in. |
| Weight | 400 lbs. | 400 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
