OUT OF STOCK - CALL FOR AVAILABILITY

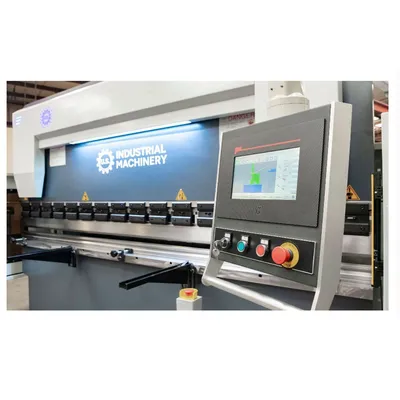

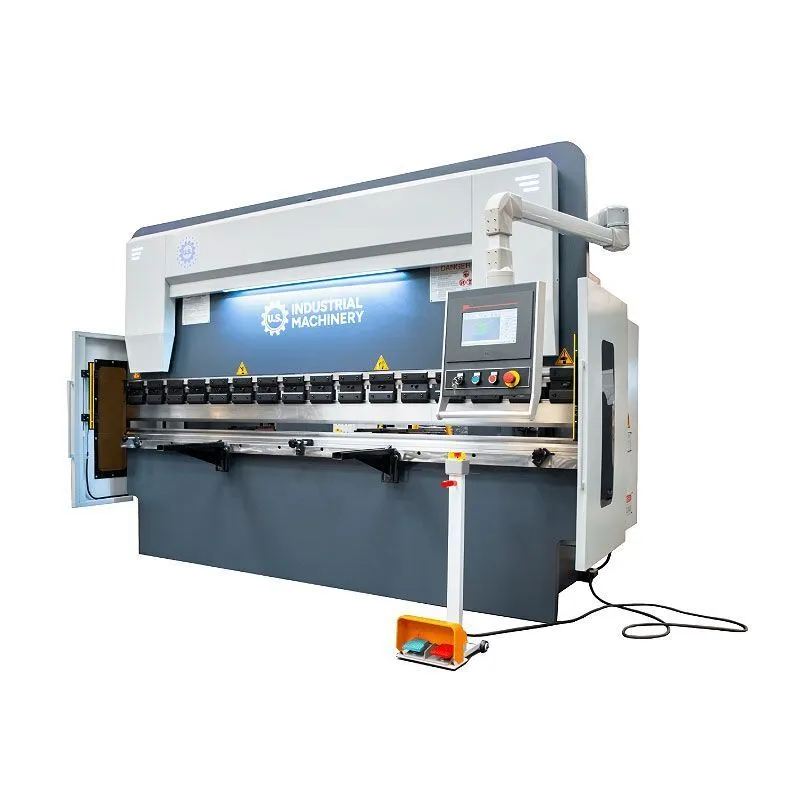

U.S. INDUSTRIAL USHB390-13CNC CNC Hydraulic Press Brake has a 390 Ton working pressure and 13 ft Length of working table.Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume. These machines can handle the most demanding jobs with impeccable details. Key features include: 6” LCD touchscreen to control the bend angle and back-gauge position, 10 bends per program or cross-section, Up to 20 punch library and up to 50 die library, Auto bend sequence, Auto back-gauge retract, Spread length, Interference bend chart, Calculated bend allowance, Programmable ram dwell And more.
| Pressure/Tonnage | 390 T | 353.802 t |
| # Axis | 2 | 2 |
| Throat Depth | 15.7" | 398.78 mm |
| Table Length | 157.4" | 3,998 mm |
| Distance Between Housings | 120.8" | 3,068.3 mm |
| Backgauge Travel | 24" | 609.6 mm |
| Main Motor | 30 HP, 220 or 440V, 3 ph (specify) | 30 HP, 220 or 440V, 3 ph (specify) |
| Stroke Adjustment of Ram | 3.93" | 99.822 mm |
| Ram travel | 9.84" | 249.94 mm |
| Open Height | 24.8" | 629.92 mm |
| Bed Height | 40" | 1,016 mm |
| Shipping weight | 51,808 lb | 23,499.7 kg |
| Control | CNC | CNC |
| Dimensions | 180 x 87 x 130 in. | 180 x 87 x 130 in. |
| Weight | 51808 lbs | 51808 lbs |
*Due to changes in economic conditions, US Industrial Machines are subject to a tariff surcharge.
Please contact our sales team to verify pricing.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

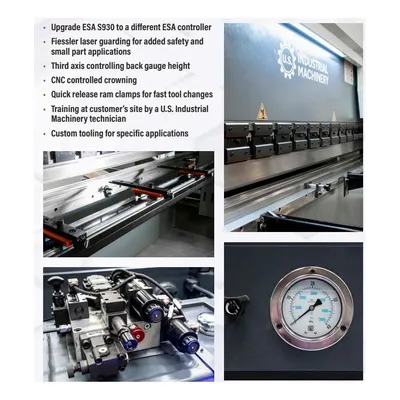

Optional Items - Call for price:
*Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4)
*Upgrade to Pilz PSENvip LED Safety Guarding: (Substitute for deTec 4)
*High Speed Servo Back Gauge
*Upgrade to Cam-Lever Quick Action Ram Clamps
*Training in our Memphis, TN Facility
*Training at customer site, more than 300 miles from Memphis
*Training at customer site, more than 300 miles from Memphis (If outside continental USA, please call for quote.)
