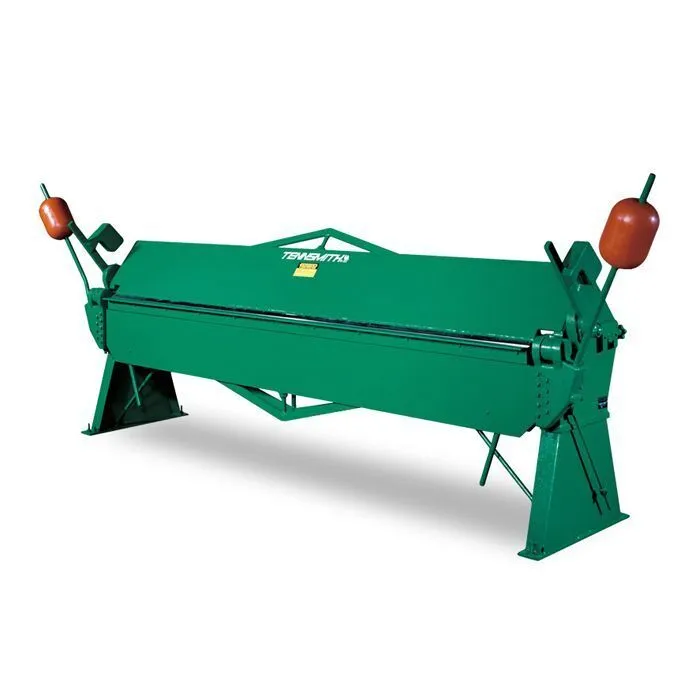

TENNSMITH HB145-18 Heavy Duty Hand Brake has a bending length 145 inches and mild steel capacity of 18 gauge. Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thickness or radii.Welded steel plate construction and heavy truss rods and braces provide strength and durability.
| Capacity (ga) Mild Steel | 18 gauge | 18 gauge |
| Bending Length | 145" | 3.7 m |
| Bending Length | 12' | 3,657.6 mm |
| Beam Adjustment | 0.5" | 12.7 mm |
| Min Reverse Bend | 0.25" | 6.35 mm |
| Maximum Lift of Beam | 2.25 | 2.25 |
| Minimum Flange in Capacity Material | 1" | 25.4 mm |
| Shipping Dimensions L/W/H | 185 x 53 x 59-1/2 in. Counterweights in Place | 185 x 53 x 59-1/2 in. Counterweights in Place |
| Shipping Weight | 3,400 lb | 1,542.2 kg |
| Dimensions | 185 x 53 x 59-1/2 in. Counterweights in Place | 185 x 53 x 59-1/2 in. Counterweights in Place |
| Weight | 3400 lbs. | 3400 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
