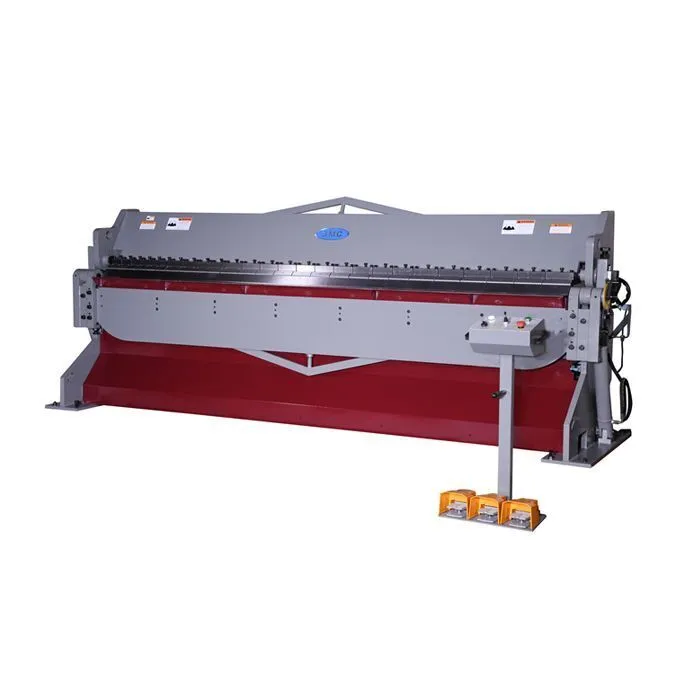

GMC HBB-1214 Heavy Duty Hydraulic Box and Pan Brake has a max bending length of 12 feet and mild steel capacity of 14 gauge. This machine is made in Taiwan. 26 inch manual back gauge with handwheel. Heavy welded all steel construction for maximum rigidity.
| Bending Length (ft) | 10' | 3,048 mm |
| Hemming Max Thickness | 28 gauge | 28 gauge |
| Bending Angle/Degree | 135 degrees | 135 degrees |
| Beam Opening | 3" | 76.2 mm |
| Manual Back Gauge | 26" | 660.4 mm |
| Oil Tank | 17 gal | 64.4 L |
| Hydraulic Oil | Shell #68 or equivalent | Shell #68 or equivalent |
| Main Motor | 5 HP | 5 HP |
| Power Requirement | 3 Phase | 3 Phase |
| Prewired Voltage | 220VAC 20A | 220VAC 20A |
| Optional Voltage | 440VAC 10A | 440VAC 10A |
| Machine Weight | 6,850 lb | 3,107.1 kg |
| Shipping Weight | 6,950 lb | 3,152.5 kg |
| Overall Dimensions | 142 x 46 x 66 in. | 142 x 46 x 66 in. |
| Shipping Dimensions | 153 x 41 x 67 in. | 153 x 41 x 67 in. |
| Dimensions | 142 x 46 x 66 in. | 142 x 46 x 66 in. |
| Weight | 6950 lbs. | 6950 lbs. |
Mild Steel (hot roll) 60k PSI
Stainless Steel 85k PSI
Soft Aluminum 28K PSI
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items:
One-piece straight finger instead of assorted fingers , extra - call for pricing
Safety fence for enclosure of the front side of the machine - call for pricing
Safety light curtain - call for pricing
