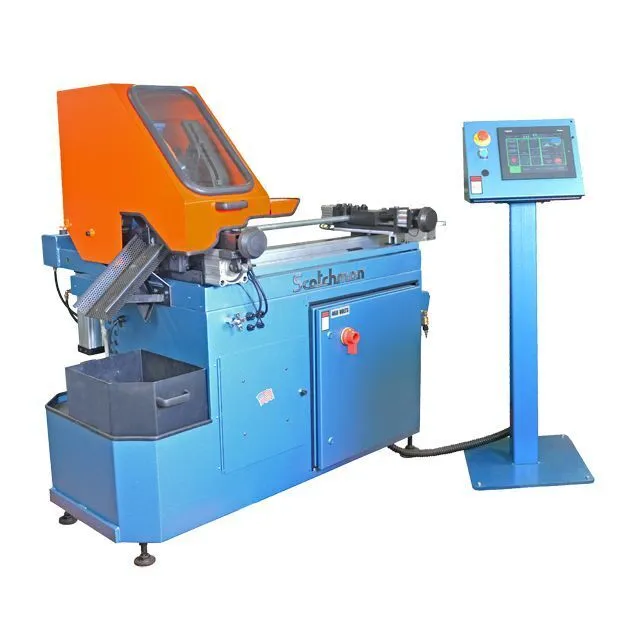

The CPO 315 HFA-CNC saw is fully programmable so every cut length is fast and accurate. It uses a 30" linear actuator, driven by a servo motor.With its 12-1/2" blade, it allows you to cut up to 3-1/2" diameter tube or pipe and up to 1-3/4" solid material, while maintaining a length tolerance of +or- .006" per index and has a squareness tolerance of +or- .002" per diameter inch.The CPO 315 HFA-CNC's standard features include a large 10" touch screen control, an unlimited length setting with a 30" single length shuttle and a variable speed control.
| Material Type | Ferrous | Ferrous |
| Max Blade Diameter | 12.5" | 317.5 mm |
| Round Tube | Up to 3-1/2 in. ( ≤ 89 mm) * | Up to 3-1/2 in. ( ≤ 89 mm) * |
| Square Tube | Up to 3-1/8 x 3-1/8 in. ( ≤ 79 mm) * | Up to 3-1/8 x 3-1/8 in. ( ≤ 79 mm) * |
| Round Solid | Up to 1-3/4 in. ( ≤ 44.5 mm) * | Up to 1-3/4 in. ( ≤ 44.5 mm) * |
| Square Solid | Up to 1-1/2 x 1-1/2 in. ( ≤ 37 x 37 mm) * | Up to 1-1/2 x 1-1/2 in. ( ≤ 37 x 37 mm) * |
| Motor | 5 HP | 5 HP |
| Power | 230v, 3-phase ** | 230v, 3-phase ** |
| Cutting Speeds | Variable Speed 11 to 177 rpm | Variable Speed 11 to 177 rpm |
| Arbor Bore Size | 40 mm | 1.5748" |
| Air Pressure | 90 lbs. Minimum | 90 lbs. Minimum |
| Pin Spacing | 4/12/64 | 4/12/64 |
| Length Tolerance | + or - 0.006 in. per index | + or - 0.006 in. per index |
| Squareness Tolerance | + or - 0.002" in. per diameter inch | + or - 0.002" in. per diameter inch |
| Shipping Weight | 1,770 lb | 802.9 kg |
| Dimensions | L- 72 x W-44 x H-64 in. | L- 72 x W-44 x H-64 in. |
| Weight | 1770 lbs. | 1770 lbs. |
* Cutting Capacities Based on Mild Steel
** Available Voltages:
045012: CPO 315 HFA CNC - 230V 3 PH (VARIABLE SPEED 11-177 RPM)
045015: CPO 315 HFA CNC - 460V 3 PH (VARIABLE SPEED 11-177 RPM)
047020: CPO 315 HFA/NF CNC - 230V 3 PH (3000 RPM)
047040: CPO 315 HFA/NF CNC - 460V 3 PH (3000 RPM)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts
