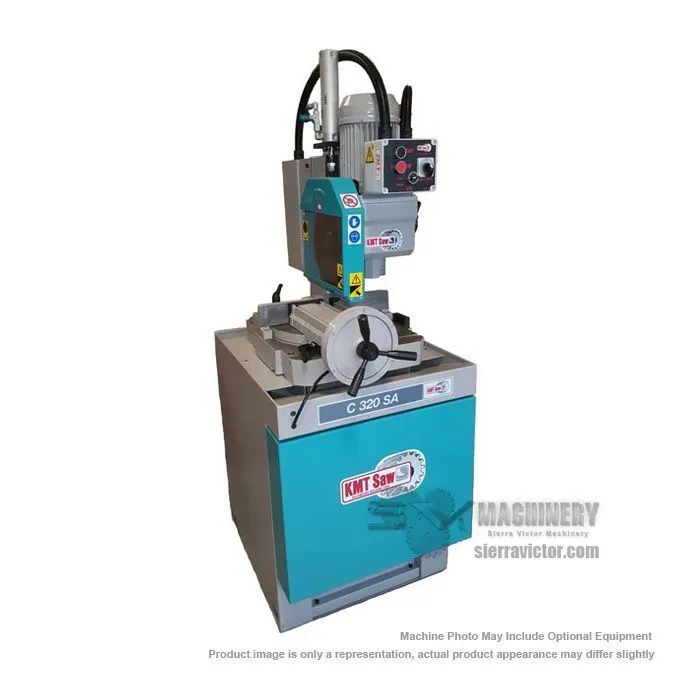

KMT SAW C 320-SA Vertical Column Semi-Auto Cold Saw Max Blade Diameter is 12.5" (315mm). The sawframe is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero. Vertical column machines provide the construction that is the most stable of all cold saws. This means superior sawframe guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine.
| Max Blade Diameter | 315 mm | 12.402" |
| Round Tube at 90° | 4 in. | 4 in. |
| Square Tube at 90° | 3.5 in. | 3.5 in. |
| Rectangle Tube at 90° | 3.5 x 5.75 in. | 3.5 x 5.75 in. |
| Round at 45° Left | 4 in. | 4 in. |
| Square at 45° Left | 3.5 in. | 3.5 in. |
| Rectangular at 45° Left | 3 x 4 in. | 3 x 4 in. |
| Round at 45° Right | 4 in. | 4 in. |
| Square at 45° Right | 3.5 in. | 3.5 in. |
| Rectangular at 45° Right | 3 x 4 in. | 3 x 4 in. |
| Round at 60° Right | 3.5 in. | 3.5 in. |
| Square at 60° Right | 3 in. | 3 in. |
| Rectangular at 60° Right | 2.75 x 3.5 in. | 2.75 x 3.5 in. |
| Motor | 2.5 HP | 2.5 HP |
| Power | 220v/3 or 460v/3 (specify) | 220v/3 or 460v/3 (specify) |
| Spindle RPM | (2 speed) 17/33 | (2 speed) 17/33 |
| Spindle Diameter | 40 mm | 1.5748" |
| Max. Vice Opening | 7.25" | 184.15 mm |
| Work Height | 36.25" | 920.75 mm |
| Dimensions | 25 w x 31 deep in. | 25 w x 31 deep in. |
| Weight | 800 lbs. | 800 lbs. |
*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
AC103: Additional 6' connecting to AC102
