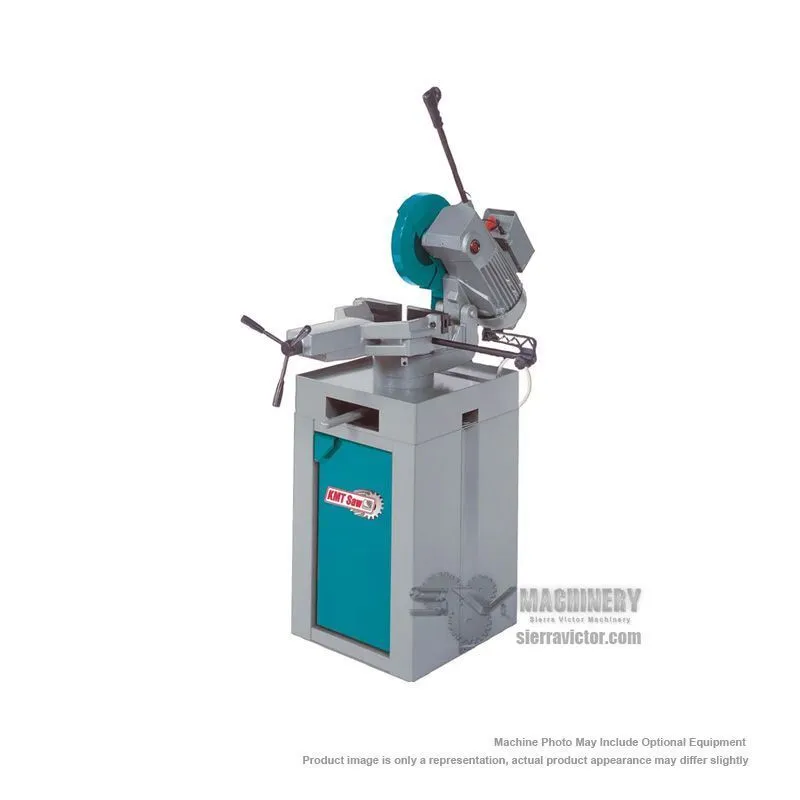

KMT SAW C300 Manual Cold Saw has a Max Blade of 12". For tubes, pipes, light structurals. Hinge type machines are generally not considered production machines, but may be used in production under carefully considered applications. 3 HP motor 220/1, 220/3, 460/3.
| Construction Type | Hinge Type | Hinge Type |
| Max. Blade Diameter | 12" | 304.8 mm |
| Tubing Round at 90° | 4 in. | 4 in. |
| Tubing Rectangle at 90° | 4.75 x 3 in. | 4.75 x 3 in. |
| Tubing Square at 90° | 3.5 in. | 3.5 in. |
| Round at 45° right | 3.5 in. | 3.5 in. |
| Square at 45° right | 2.75 in. | 2.75 in. |
| Rectangle at 45° right | 3 x 2.75 in. | 3 x 2.75 in. |
| Round at 45° left | 3 in. | 3 in. |
| Square at 45° left | 2.75 in. | 2.75 in. |
| Rectangle at 45° left | 3 x 2.75 in. | 3 x 2.75 in. |
| Spindle RPM | 50 (220V, 1ph), 33/66 | 50 (220V, 1ph), 33/66 |
| Spindle Diameter | 32 mm | 1.2598" |
| Motor | 3 HP | 3 HP |
| Voltage | 220v/1, 220v/3, 460v/3 (specify) | 220v/1, 220v/3, 460v/3 (specify) |
| Max. Vise Opening | 6.25" | 158.75 mm |
| Work height | 38.5" | 977.9 mm |
| Shipping Weight | 400 lb | 181.4 kg |
| Dimensions | 20 w x 22 deep in. | 20 w x 22 deep in. |
| Weight | 400 lbs. | 400 lbs. |
*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
**Other Voltages Available
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
AC230: Mobile Kit
AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
