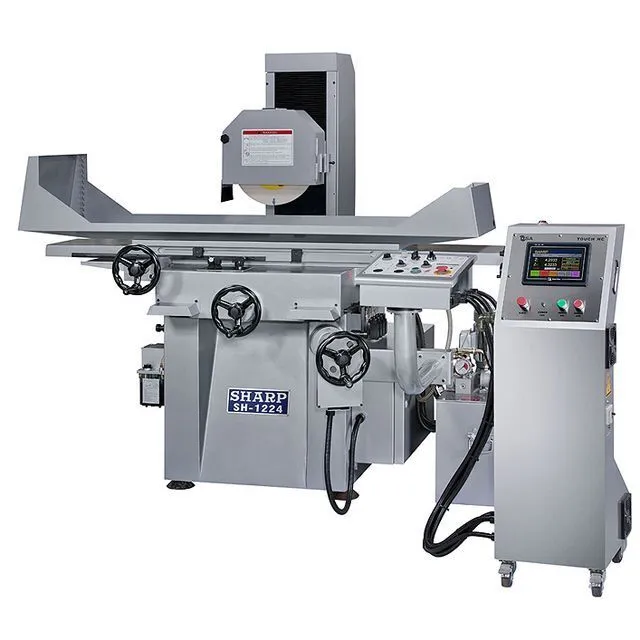

NEW SHARP SH-1224

Florida, United States
3,852Listings|9Followers
Overview
Reciprocating Surface Grinders

The model has automatic longitudinal and cross feed. It offers intermittent and continuous cross feed. The table and saddle both has double V ways. The NC spindle downfeed system is optional.

Specs
Table Size
12" x 24"
12" x 24"
Spindle Speed
1,720 RPM
1,720 RPM
Power
3 hp
2.2 kW
Dimensions
6.4 x 6.13 x 5.91 ft.
6.4 x 6.13 x 5.91 ft.
Weight
4,000 lbs.
4,000 lbs.

The model has automatic longitudinal and cross feed. It offers intermittent and continuous cross feed. The table and saddle both has double V ways. The NC spindle downfeed system is optional.

Equipped With

OPTIONAL ITEMS - CALL FOR PRICE:

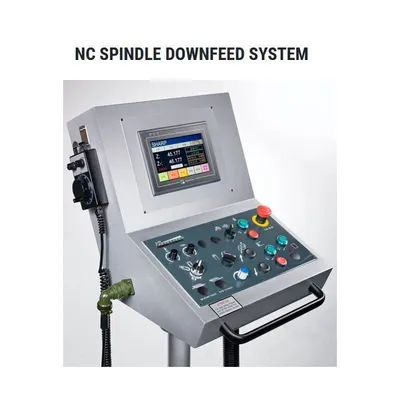

NC spindle down feed with touch screen, servo motor, ballscrew
Auto parallel dresser
15HP Upgraded from 10HP
Coolant System w/Paper Filter & Magnetic Separator (30 Gal)
Parallel Dresser (Manual)
Parallel Dresser (Semi-Automatic)
Spare Wheel Adaptor (Flange)
Radius and Angle Dresser
Mist collection system
