New | in-Stock

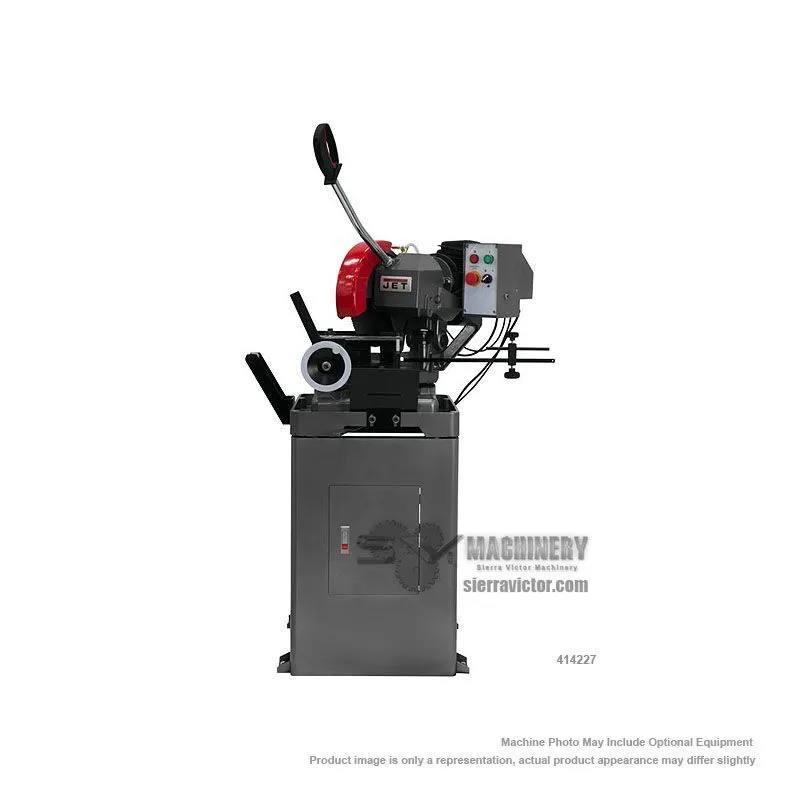

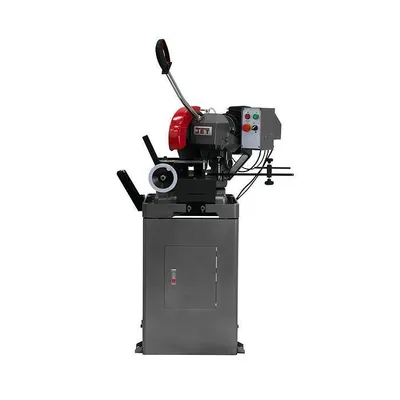

NEW JET CS-315

Florida, United States
Asking Price
USD $3,728.00
1 available
3,886Listings|10Followers
Overview
Circular Cold Saws

JET CS-315 Ferrous Manual Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. Flood Coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life.

Specs
Material Type
Ferrous
Ferrous
Max. Blade Diameter
315 mm
12.402"
Tubing Round at 45°
3-1/2 in.
3-1/2 in.
Tubing Round at 90°
3-1/2 in.
3-1/2 in.
Solid Round at 45°
3-1/2 in.
3-1/2 in.
Solid Round at 90°
3-1/2 in.
3-1/2 in.
Tubing Rectangle at 45°
2-1/5 x 2-3/5 in.
2-1/5 x 2-3/5 in.
Tubing Rectangle at 90°
4 x 3-1/5 in.
4 x 3-1/5 in.
Solid Rectangle at 45°
2-1/5 x 2-3/5 in.
2-1/5 x 2-3/5 in.
Solid Rectangle at 90°
4 x 3-1/5 in.
4 x 3-1/5 in.
Tubing Square at 45°
2-3/5 x 2-3/5 in.
2-3/5 x 2-3/5 in.
Tubing Square at 90°
3-1/5 x 3-1/5 in.
3-1/5 x 3-1/5 in.
Solid Square at 45°
2-3/5 x 2-3/5 in.
2-3/5 x 2-3/5 in.
Solid Square at 90°
3-1/5 x 3-1/5 in.
3-1/5 x 3-1/5 in.
Blade Speeds
52, 104 rpm
52, 104 rpm
Motor
2 HP
2 HP
Voltage
230v, 3-phase
230v, 3-phase
Max. Vise Opening
4.71"
119.63 mm
Dimensions
40 x 39 x 72 in.
40 x 39 x 72 in.
Weight
420 lbs.
420 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
