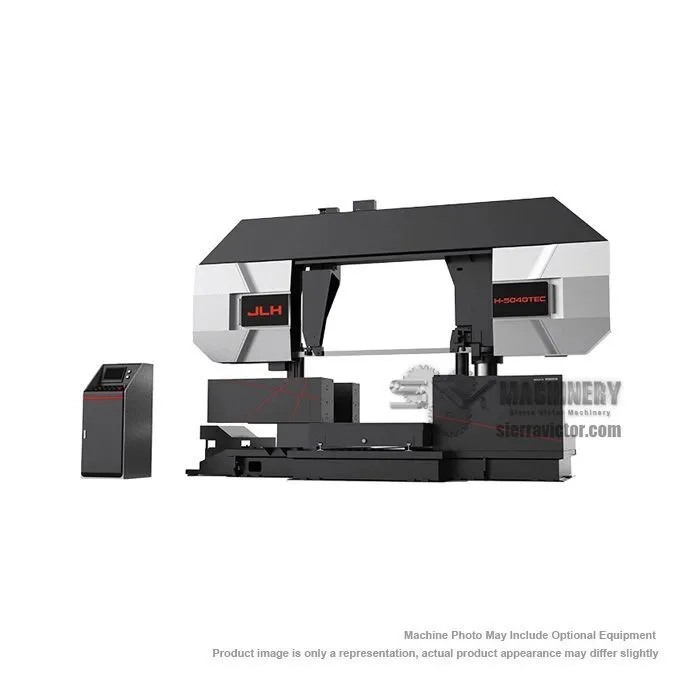

NEW JLH H-5040TEC

Florida, United States
3,895Listings|10Followers
Overview
Horizontal Band Saws

JLH Saws H-5040TEC is a 40 inch Semi-Automatic Bandsaw.Drive motor is inverter controlled.JLH Saws Control provides latest in PLC based control technology.

Specs
Cutting Capacity Round
39.4 in.
39.4 in.
Cutting Capacity Square
39.4 x 51.2 in.
39.4 x 51.2 in.
Blade Size
429.1 x 2 5/8 x 0.06 in.
429.1 x 2 5/8 x 0.06 in.
Blade Tension
Hydraulic controlled
Hydraulic controlled
Blade Speed
32.8-330 sfpm
32.8-330 sfpm
Blade Motor
25.2 HP
25.2 HP
Power
220v or 480v, 3-Phase 60Hz
220v or 480v, 3-Phase 60Hz
Hydraulic Motor
5 HP
5 HP
Hydraulic Oil Tank Capacity
26.4 gal
99.9 L
Coolant Motor
0.24 HP
0.24 HP
Coolant Tank Capacity
39.6 gal
149.9 L
Drive and Idle Wheel Size
φ 43.3 in. (1100mm)
φ 43.3 in. (1100mm)
Dimensions
209 x 87 x 118 in.
209 x 87 x 118 in.
Weight
30,865 lbs. (approx.)
30,865 lbs. (approx.)

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
