NEW GMC MACHINE TOOLS PBR-1010E

Florida, United States
Asking Price
USD $28,850.00
1 available
3,834Listings|9Followers
Overview
Plate Bending Rolls including Pinch

GMC PBR-1010E Bending Roll with mild steel capacity of 10 feet x 10 gauge, Power source 220 volt. E models come with motorized bending roll up/down with push button and digital display for easy operation of repeat jobs.This machine is made in Taiwan.All (3) rolls are hardened rolls as standard feature. 3-rollers are driven to perform high accuracy. 3/8”, 1/2” and 5/8” grooves on rollers.Heavy duty all steel welded construction.

Specs
Length of Rolls
10'
3 m
Capacity - Mild Steel
10 gauge
10 gauge
Capacity - Stainless Steel
14 gauge
14 gauge
Capacity - Soft Aluminum
0.25"
6.35 mm
Min. Thickness
26 gauge
26 gauge
Rolls Opening
0.5"
12.7 mm
Rolls Speed
17 ft/min.
5,181.6 mm/min.
Min. Bending Dia.
9"
228.6 mm
Pre-bend
0.12"
3.048 mm
Power
7.5 hp
5.6 kW
Voltage
220V or 440V (specify)
220V or 440V (specify)
Phase
3-phase
3-phase
Dimensions
152 x 35 x 56 in.
152 x 35 x 56 in.
Weight
5,150 lbs.
5,150 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

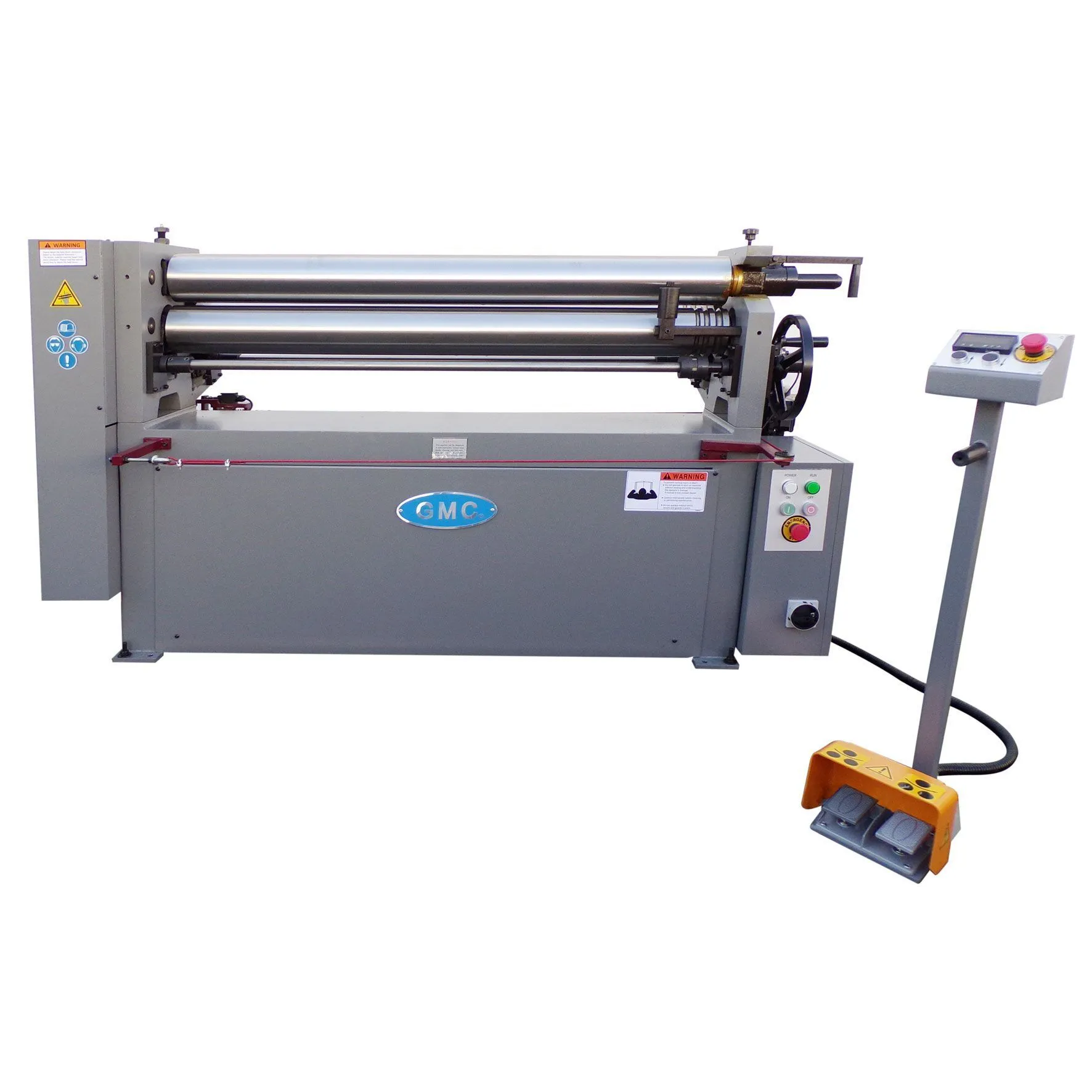

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
