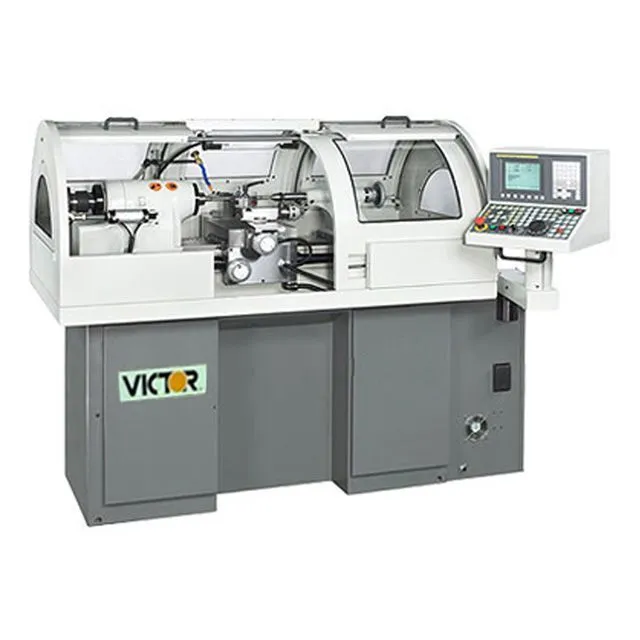

NEW VICTOR 1118DCL

Florida, United States
3,950Listings|13Followers
Overview
CNC Lathes

A powerful multi-function super precision CNC toolroom lathe comes with a smooth 3 HP inverter spindle motor that runs virtually vibration free and extremely quite. Fanuc Oi Mate T ultra-compact CNC integrated with LCD display plus Manual GuideSpindle runout within 50 millionths

Specs
Spindle Capacity w/Jaw Chucks
6"
152.4 mm
Spindle Capacity w/Expanding Collets
3"
76.2 mm
Spindle Capacity w/Round 5C Collets
1.0625"
26.988 mm
Spindle Capacity w/Hexagon 5C Collets
0.875"
22.225 mm
Spindle Capacity w/Square 5C Collets
0.75"
19.05 mm
Spindle Capacity w/Step Chucks
1-1/16” to 6”
1-1/16” to 6”
Swing Over Bed
14.96"
379.98 mm
Maximum Turning Diameter
6"
152.4 mm
Maximum Turning Length
18"
457.2 mm
Distance Between Centers
18"
457.2 mm
Hole Through Spindle
1.25"
31.75 mm
Spindle Speed
50 ~ 4,000 rpm (3 HP) / 50 ~ 6,000 rpm (5 HP optional)
50 ~ 4,000 rpm (3 HP) / 50 ~ 6,000 rpm (5 HP optional)
Spindle Nose ID/OD
5C / 4º taper
5C / 4º taper
Spindle Nose Diameter
2.189"
55.601 mm
Maximum Cross Slide Travel (X-axis)
8.66"
219.96 mm
Maximum Longitudinal Travel (Z-axis)
13.39"
340.11 mm
Quick-Action Compound Slide Travel
0.1"
2.54 mm
Rapid Traverse (X/Z axis)
787 ipm
787 ipm
Tailstock Taper Center
M.T. #2
M.T. #2
Tailstock Quill Diameter
1.36"
34.544 mm
Tailstock Quill Travel
3.75"
95.25 mm
Spindle Motor
3 hp
2.2 kW
Phase
3
3
Voltage
220v
220v
Inverter Spindle Motor
3 HP (5 HP optional)
3 HP (5 HP optional)
X/Z-axis Servo Motor
X: ß2 / Z: ß2
X: ß2 / Z: ß2
Coolant Pump Motor
1/4 HP
1/4 HP
Gross Weight
2,860 lb
1,297.3 kg
Shipping Dimensions
87" x 44" x 85"
87" x 44" x 85"
Control
CNC (Fanuc 0i Mate T)
CNC (Fanuc 0i Mate T)
Dimensions
87 x 44 x 85 in.
87 x 44 x 85 in.
Weight
2,860 lbs.
2,860 lbs.

*Optional 5 HP motor available

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

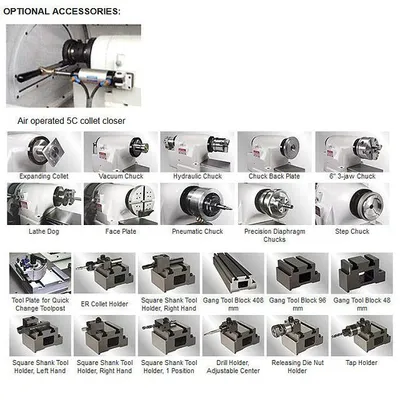

OPTIONAL ITEMS - CALL FOR PRICE:
Air operated 5C collet closer
Expanding Collet
Vacuum Chuck
Hydraulic Chuck
Chuck Back Plate
6" 3-jaw Chuck
Lathe Dog
Face Plate
Pneumatic Chuck
Precision Diaphragm Chucks
Step Chuck
Tool Plate for Quick Change Toolpost
ER Collet Holder
Square Shank Tool Holder, Right Hand
Square Shank Tool Holder, Left Hand
Square Shank Tool Holder, 1 Position
Gang Tool Block 408mm
Gang Tool Block 96mm
Gang Tool Block 48mm
Drill Holder, Adjustable Center
Releasing Die Nut Holder
Tap Holder
