| Spindle Capacity w/Jaw Chucks | 6" | 152.4 mm |
| Swing Over Bed | 11" | 279.4 mm |
| Distance Between Centers | 18" | 457.2 mm |
| Spindle Speed | 50 - 4000 rpm | 50 - 4000 rpm |
| # of Spindle Speeds | Variable | Variable |
| Spindle Bore | 1.25" | 31.75 mm |
| Spindle Nose ID/OD | 5C 10°/4° taper | 5C 10°/4° taper |
| Spindle Nose Diameter | 2.19" | 55.626 mm |
| Motor | 5 hp | 3.7 kW |
| Phase | 3 | 3 |
| Voltage | 220/440v | 220/440v |
| Dimensions | 6.07 x 2.46 x 5.58 ft. | 6.07 x 2.46 x 5.58 ft. |
| Weight | 1,804 lbs. | 1,804 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

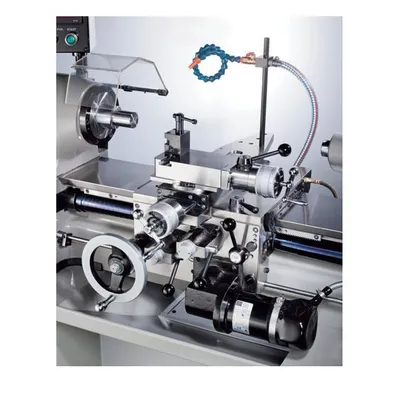

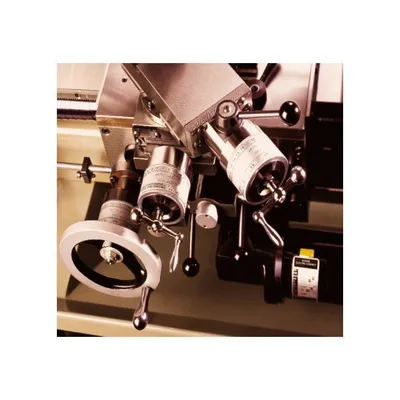

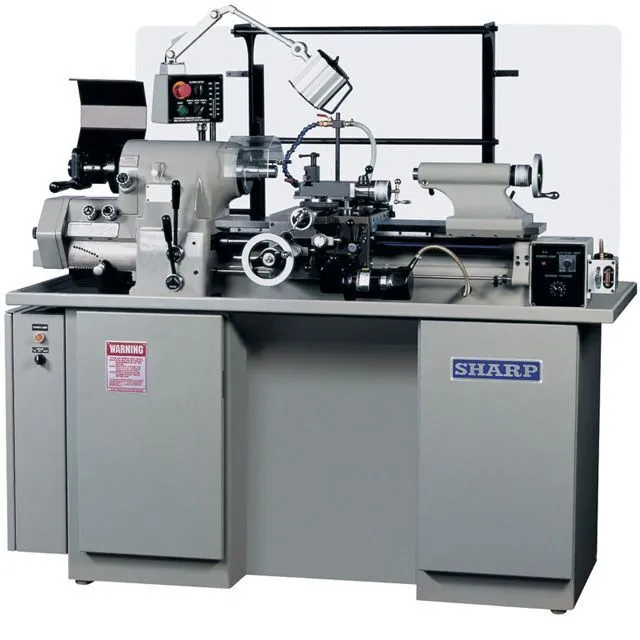

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items - Call for price:
3-jaw 6" chuck with 6" fixture plate
4-jaw 6" chuck with 6" fixture plate
6-jaw chuck with 6" fixture plate
3-jaw 6" zero set chuck with fixture plate
4-jaw 6" chuck with fixture plate
6-jaw chuck with 6″ fixture plate
380V, 440V, 575V transformer
5C collet set (1/8" to 1-1/16" by 1/16") 16 sets
7" face plateQuick change tool holder set 7 sets
Vertical cut-off slide
Taper attachment
Steady rest
Follow rest
Micrometer cartridge stop with bracket
Dorian tool-MT #2
Dorian tool-MT #2
Drill chuck & arbor
