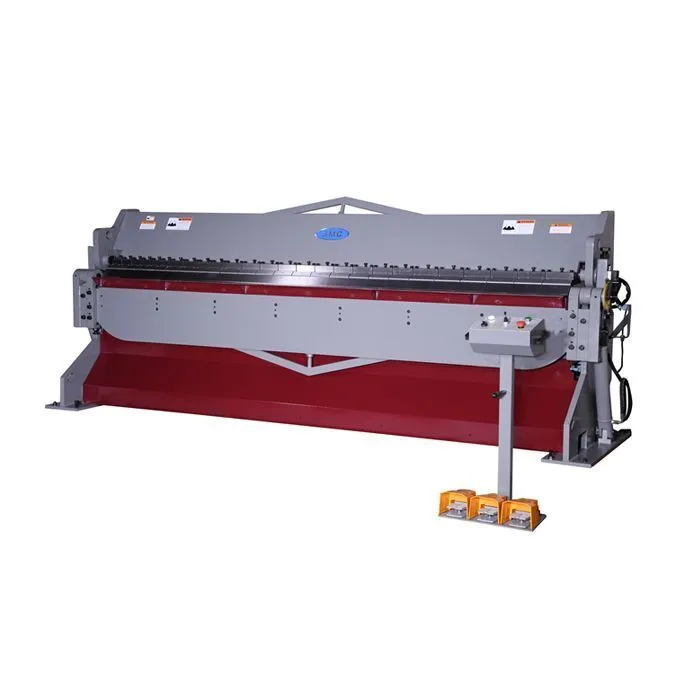

GMC HBB-1010 Hydraulic Box & Pan Brake has a 10 foot max bending length and 10 gauge mild steel capacity. This hydraulic pan brake machine is made in Taiwan. 26 inch manual back gauge with one side handwheel operation. Heavy welded all steel construction for maximum rigidity.
| Capacity (ga) Mild Steel | 10 gauge | 10 gauge |
| Capacity (ga) Stainless | 12 gauge | 12 gauge |
| Capacity (in.) Aluminum | 0.25" | 6.35 mm |
| Hemming Max Thickness | 24 gauge | 24 gauge |
| Bending Angle/Degree | 135° | 135° |
| Max. Box Depth | 6.02" | 152.91 mm |
| Beam Opening | 3" | 76.2 mm |
| Manual Back Gauge | 26" | 660.4 mm |
| Oil Tank | 32 gal | 121.1 L |
| Hydraulic Oil | Hydraulic oil, Shell #68 or equivalent | Hydraulic oil, Shell #68 or equivalent |
| Main Motor | 10 HP | 10 HP |
| Power Requirement | 220V/440V, 3 ph | Amperage draw: 220V/35A, 440V/20A | 220V/440V, 3 ph | Amperage draw: 220V/35A, 440V/20A |
| Machine Weight | 8,050 lb | 3,651.4 kg |
| Shipping Weight | 8,150 lb | 3,696.8 kg |
| Overall Dimensions | 142 x 46 x 66 in. | 142 x 46 x 66 in. |
| Shipping Dimensions | 153 x 41 x 67 in. | 153 x 41 x 67 in. |
| Dimensions | 142 x 46 x 66 in. | 142 x 46 x 66 in. |
| Weight | 8150 | 8150 |
Mild Steel (hot roll) 60,000PSI
Stainless Steel tensile 85,000PSI
Soft Aluminum tensile 28,000PSI
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items:
One-piece straight finger instead of assorted fingers, extra - Call for pricing
Safety fence for enclosure of the front side of the machine - Call for pricing
Safety light curtain - Call for pricing
