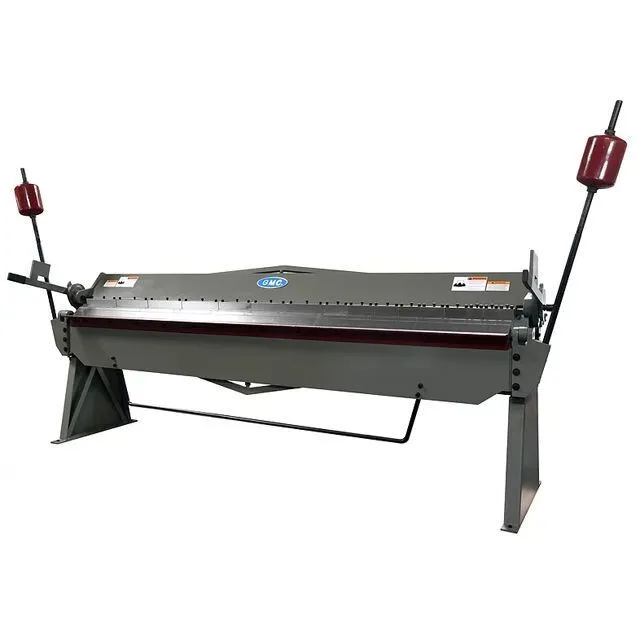

GMC BB-1014-6HD Manual Box and Pan Brake has a 10 foot bending length capacity and 14 gauge bending capacity in mild steel. 16 Total fingers assortment. Capable of hemming light gauge material of 26 gauge or thinner.
| Capacity (ga) Mild Steel | 14 gauge | 14 gauge |
| Capacity (ga) Stainless Steel | 18 gauge | 18 gauge |
| Max. Hemming Thickness for Mild Steel | 26 gauge | 26 gauge |
| Bending Length (inches) | 10' | 3,048 mm |
| Max Box Depth | 6" | 152.4 mm |
| Bending Angle | 0-135° | 0-135° |
| Beam Adjustment, Front and Back | 1" | 25.4 mm |
| Manual Clamping | Standard | Standard |
| Beam Opening | 1.5625" | 39.688 mm |
| Minimum Reverse Bend | 0.5" | 12.7 mm |
| Machining Length | 159" | 4,038.6 mm |
| Machine Width | 32" | 812.8 mm |
| Machine Height | 77" | 1,955.8 mm |
| Shipping Dimensions LxWxH | 142 x 30 x 41 in. | 142 x 30 x 41 in. |
| Net Weight | 3,250 lb | 1,474.2 kg |
| Shipping Weight | 3,350 lb | 1,519.5 kg |
| Dimensions | 142 x 30 x 41 in. | 142 x 30 x 41 in. |
| Weight | 3350 lbs. | 3350 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items:
One piece straight finger to convert to straight brake - $1,995.00
2" or 2.5" replacement finger - $115.00
3" or 3.5" replacement finger - $115.00
5" or 6" replacement finger - $175.00
10" replacement finger - $175.00
12" replacement finger - $235.00
