New | in-Stock

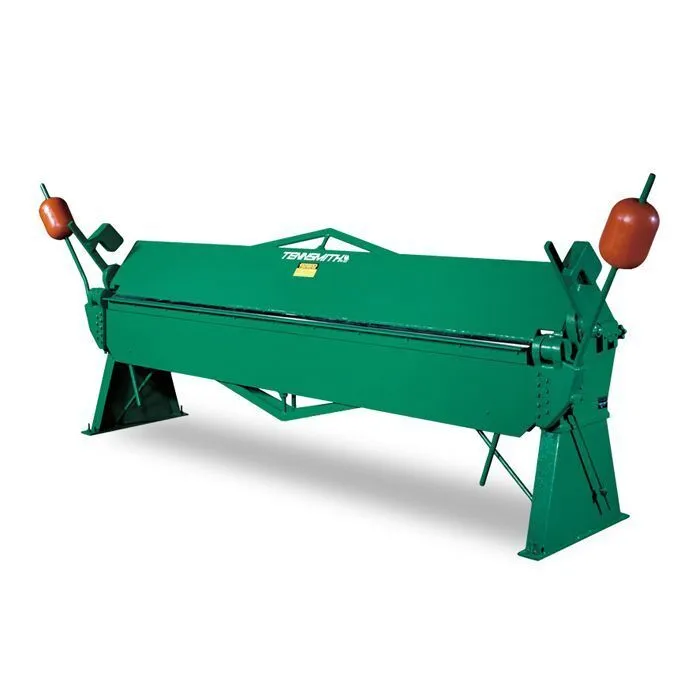

NEW TENNSMITH HB121-16

Florida, United States
Asking Price
USD $10,250.00
1 available
3,882Listings|10Followers
Overview
Apron Brakes

TENNSMITH HB121-16 is a Heavy-Duty Hand Brake Machine with a bending length of 121 inches and mild steel capacity of 16 gauge.TENNSMITH'S 10' heavy-duty hand brakes are designed and built for long service and accurate bending. Welded steel plate construction and heavy truss rods and braces provide strength and durability.Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thickness or radii.

Specs
Capacity (ga) Mild Steel
16 gauge
16 gauge
Bending Length
121"
3,073.4 mm
Beam Adjustment
0.5"
12.7 mm
Min Reverse Bend
0.25"
6.35 mm
Maximum Lift of Beam
2.25
2.25
Minimum Flange in Capacity Material
1"
25.4 mm
Machines Dimensions L/W/H
161 x 53 x 59-1/2 in. Counterweights in Place
161 x 53 x 59-1/2 in. Counterweights in Place
Machine Weight
2,875 lb
1,304.1 kg
Dimensions
161 x 53 x 59-1/2 in. Counterweights in Place
161 x 53 x 59-1/2 in. Counterweights in Place
Weight
2875 lbs.
2875 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
