New | in-Stock

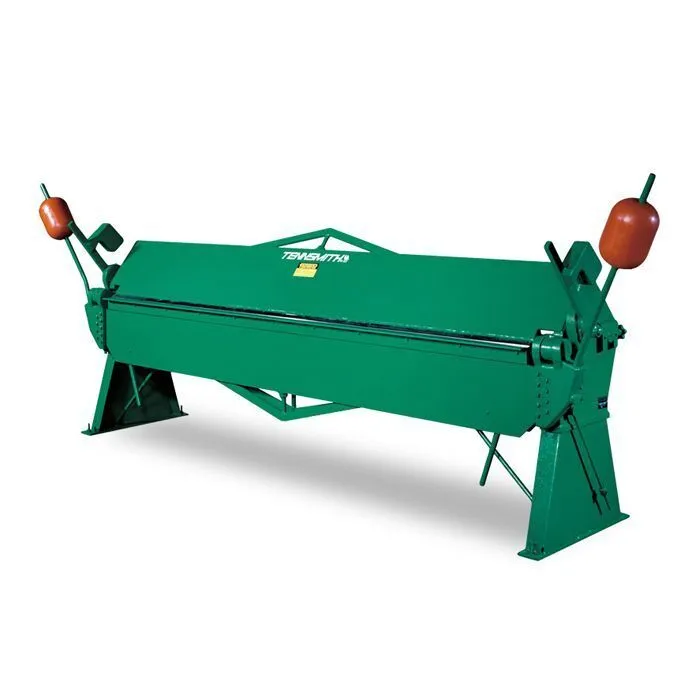

NEW TENNSMITH HB121-14

Florida, United States
Asking Price
USD $10,650.00
1 available
3,882Listings|10Followers
Overview
Apron Brakes

The HB121-14 features 120" Working Length with 14 ga mild steel capacity, up to 1/4" reverse bends, Leveling screws, fully adjustable counter balances, and replaceable nose bar and apron inserts. In stock for immediate delivery. Welded steel plate construction and heavy truss rods and braces provide strength and durability.Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thickness or radii.

Specs
Capacity (ga) Mild Steel
14 gauge
14 gauge
Bending Length
121"
3.1 m
Beam Adjustment
0.5"
12.7 mm
Min Reverse Bend
0.25"
6.35 mm
Maximum Lift of Beam
2.25
2.25
Minimum Flange in Capacity Material
1"
25.4 mm
Machines Dimensions L/W/H
162 x 54 x 63-1/2 in. Counterweights in Place
162 x 54 x 63-1/2 in. Counterweights in Place
Shipping Weight
3,250 lb
1,474.2 kg
Dimensions
162 x 54 x 63-1/2 in. Counterweights in Place
162 x 54 x 63-1/2 in. Counterweights in Place
Weight
3250 lbs.
3250 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
