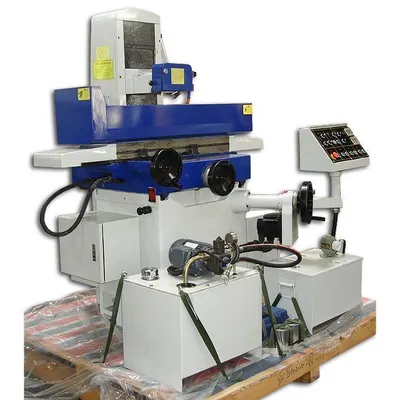

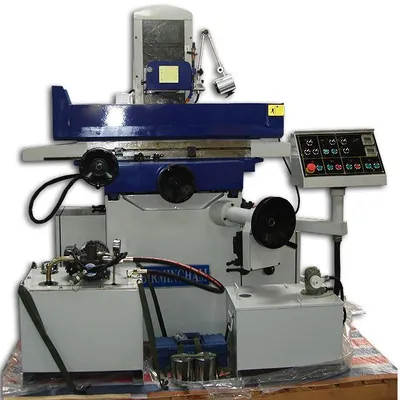

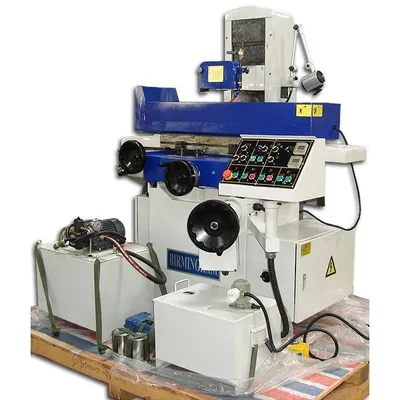

NEW BIRMINGHAM WSG-1020AHD

Florida, United States
3,831Listings|9Followers
Overview
Reciprocating Surface Grinders

Precision 3-Axis Auto, Surface Grinder with Chuck, Coolant. AHD means: Auto feed on transverse, hydraulic transmission on longitudinal, auto feed on vertical.

Specs
Table Size
9.84" x 19.69"
9.84" x 19.69"
Max Longitudinal Travel
22.05"
56 cm
Max Lateral Travel
10.83"
27.5 cm
Spindle Speed
3,450 RPM
3,450 RPM
Power
3 hp
2.2 kW
Dimensions
79" x 83" x 86"
79" x 83" x 86"
Weight
3,970 lbs.
3,970 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS - CALL FOR PRICE:

DRO System
Parallel wheel dresser
Fine Pole Electro Magnetic Chuck
Coolant and Dust Collection System
Coolant System with Paper Filter
Coolant System with Magnetic Separator
Coolant System with Magnetic Separator and Paper Filter
