U.S. INDUSTRIAL 3VH-3-KIT Heavy Duty Manual Variable Speed Milling Machine Package has a Manual variable speed spindle drive, 3 Horsepower runs the spindle from 60 to 4200 RPM.Large 10” x 54” table with 3 T-slots, 5/8”, on 2.5” centers Table travel is 37.4”. Leadscrew pitch is 5TPI with dials on each end graduated in .001”. Standard equipment includes: Heavy duty power table feed on X axis, Flood coolant pump, hose, nozzle, Chip pan, Machine light, Front and Rear way covers and Three axis digital readout.
| Power | 3 hp | 2.2 kW |
| Taper | R8 | R8 |
| Dimensions | 6' x 6' x 80" | 6' x 6' x 80" |
| Weight | 3,400 lbs. | 3,400 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

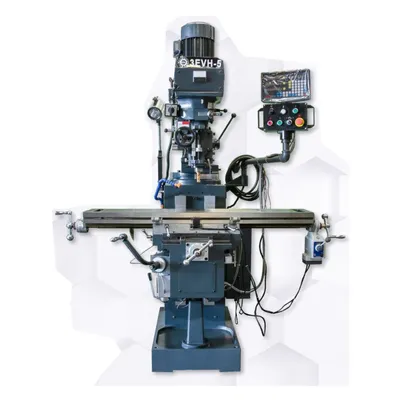

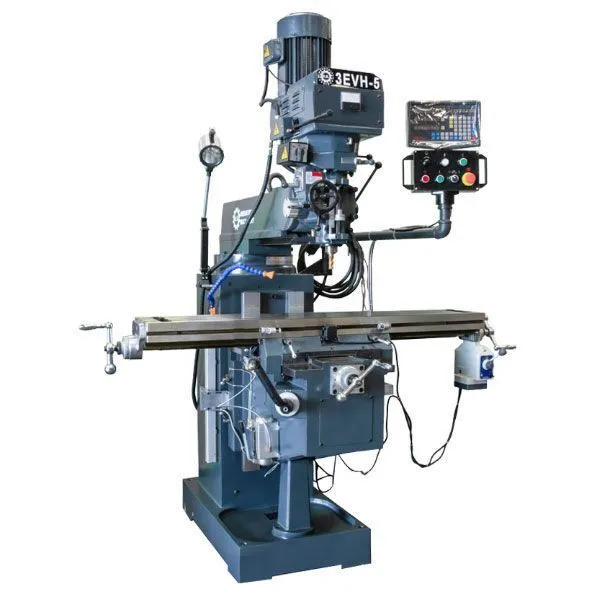

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

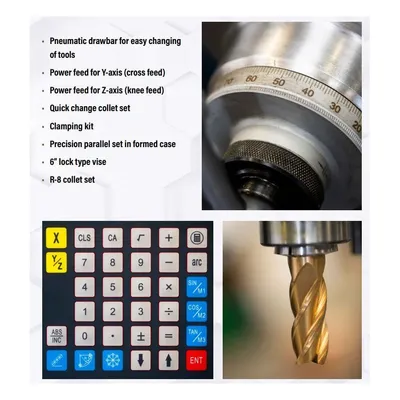

OPTIONAL ITEMS - CALL FOR PRICE:
UPM1500: Transformer for 3EVH-5 Milling Machine for 440/460/480 Volts
(*This option only applies to the 3EVH-5-KIT Model and must be purchased if the 3EVH-5 is to be set up for 440 volts.)
UPM1501: Air Power Drawbar
UPM1502: Bestline Power Feed for Y-Axis
UPM1503: Bestline Power Feed for Z-Axis
UPM1504: Mill QC Collet Set
UPM1505: Clamp Kit
UPM1506: Precision Parallel Set
UPM1507: 6" Lock Type Milling Vise
UPM1508: R-8 Collet Set
