New | in-Stock

NEW KALAMAZOO INDUSTRIES S10D

Florida, United States
Asking Price
USD $11,500.00
1 available
3,886Listings|10Followers
Overview
Wide Belt Sanders

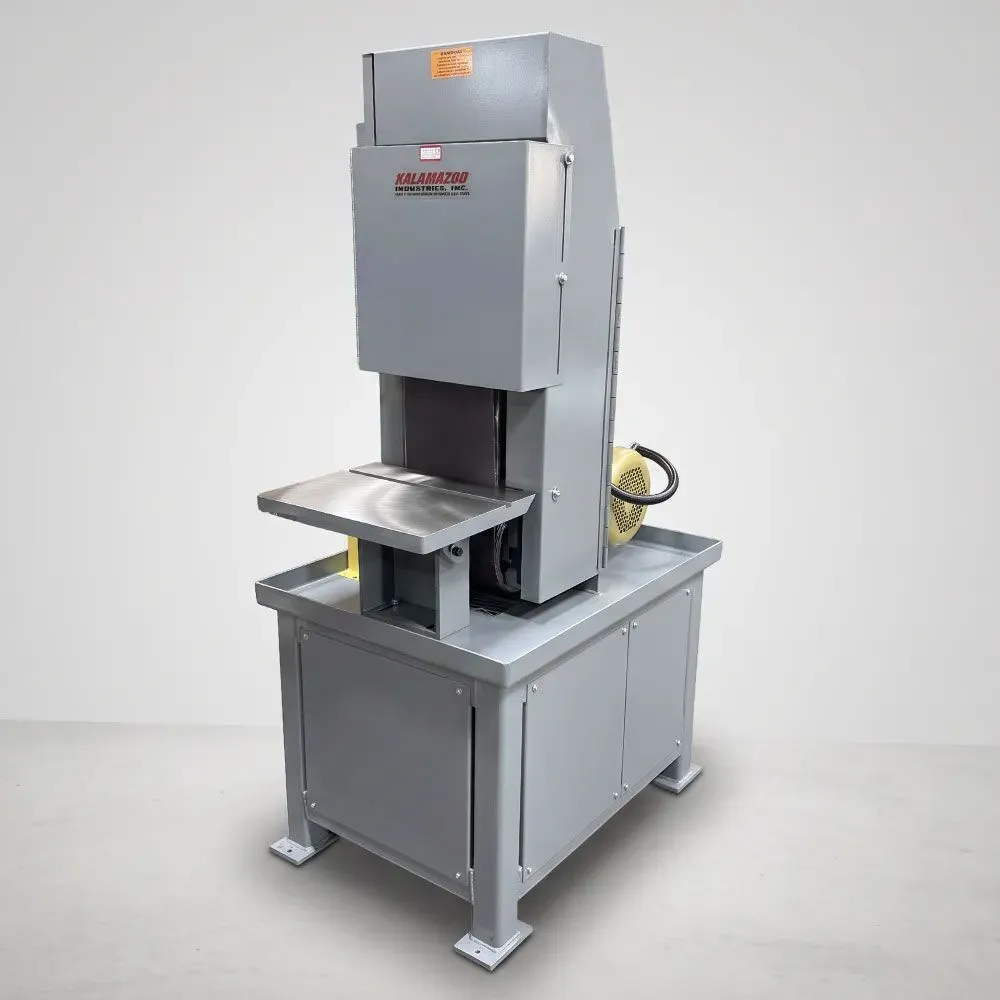

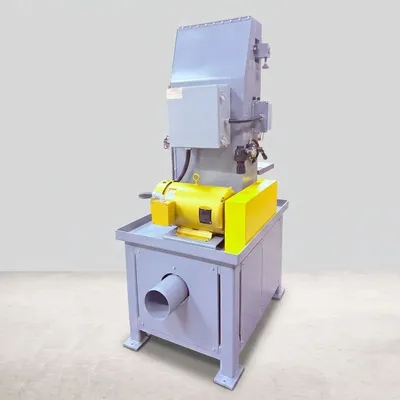

The S10D 10 x 90 inch production sander is a heavy-duty vertical belt sander that is designed for industrial use. It has a powerful 10HP 3PH motor that provides plenty of power for sanding even the most demanding materials.

Specs
Type
Dry
Dry
Width of Belt
10"
254 mm
Length of Belt
90"
2,286 mm
Belt Speed
3400 SFPM
3400 SFPM
Work Surface
10 x 28 in.
10 x 28 in.
Cast Iron Work Table
14 x 18 in.
14 x 18 in.
Platen
10 x 29 in. (Steel)
10 x 29 in. (Steel)
Motor Power
10 hp
7.5 kW
Phase
3-phase
3-phase
Voltage
230V or 460V (specify)
230V or 460V (specify)
Amperage
220V 24 amps and 440V 12.5 amps
220V 24 amps and 440V 12.5 amps
Air Tension on Belt
40 to 50 psi required
40 to 50 psi required
Table Tilt
45° down and 15° up
45° down and 15° up
Shipping Dimensions
L 45 x W 53 x H 78 in.
L 45 x W 53 x H 78 in.
Shipping Weight
1,300 lb
589.7 kg

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS - CALL FOR PRICE:

KB109050 10" x 90" 50 grit aluminum oxide belt
KB109080 10" x 90" 80 grit aluminum oxide belt
KB1090100 10" x 90" 100 grit aluminum oxide belt
Variable frequency drive
