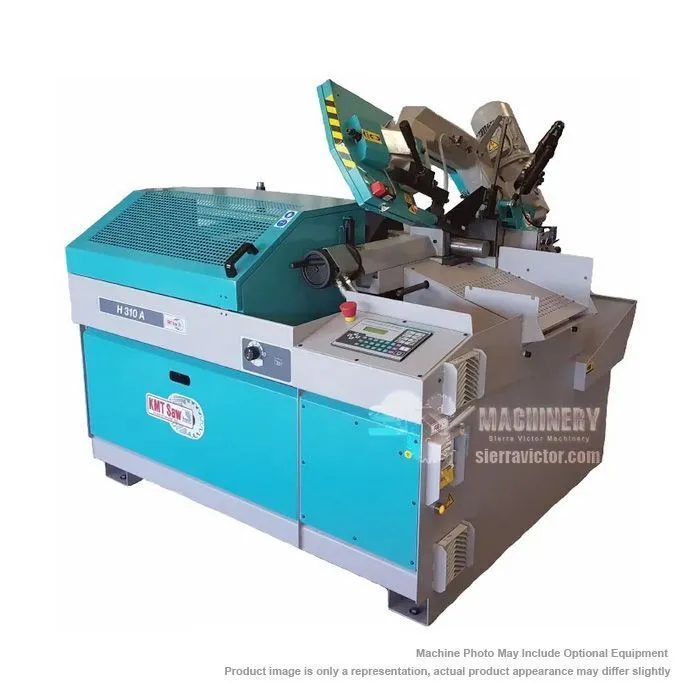

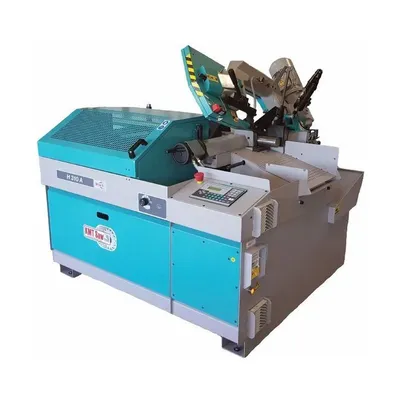

KMT SAW H310A Automatic Hydraulic Horizontal Band Saw has a round cutting capacity of 10 inches and offers fully automatic sawing in a tight footprint. Manual mitering up to 60 degrees and has a 2 HP Blade Drive available with 208V/3, 230V/3, or 460V/3-phase electrics. Standard equipment includes One Bi-metal saw blade, Low voltage control, TEFC 3 phase drive motor, Totally enclosed worm gear transmission, Full Coolant System, Full Blade Guarding, Operators Manual Parts List/Schematics and Tool kit.
| Round at 0° | 10" | 254 mm |
| Square at 0° | 9 in. | 9 in. |
| Rectangle at 0° | 7 x 11-1/2 in. | 7 x 11-1/2 in. |
| Round at 45°R | 8.25" | 209.55 mm |
| Square at 45°R | 7.5 in. | 7.5 in. |
| Rectangle at 45°R | 6-1/4 x 7-3/4 in. | 6-1/4 x 7-3/4 in. |
| Round at 60°R | 5" | 127 mm |
| Square at 60°R | 4.25 in. | 4.25 in. |
| Rectangle at 60°R | 4 x 4 in. | 4 x 4 in. |
| Blade Motor | 2 HP | 2 HP |
| Blade Speed | 60-360 fpm | 60-360 fpm |
| Saw Blade Size | H 1" x s.035" x L 9' 1" | H 1" x s.035" x L 9' 1" |
| Power | 208V/3-ph, 230V/3-ph, 460V/3-ph (Specify) | 208V/3-ph, 230V/3-ph, 460V/3-ph (Specify) |
| Vise Opening | 12" | 304.8 mm |
| Material Working Height | 37" | 939.8 mm |
| Dimensions | W 73 x L 68 in. | W 73 x L 68 in. |
| Weight | 1,500 lbs. | 1,500 lbs. |
*Material Working Height (from floor to table top)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
* AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
* AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
* AC103: Additional 6' connecting to AC102
* AC116: Spray mist coolant
