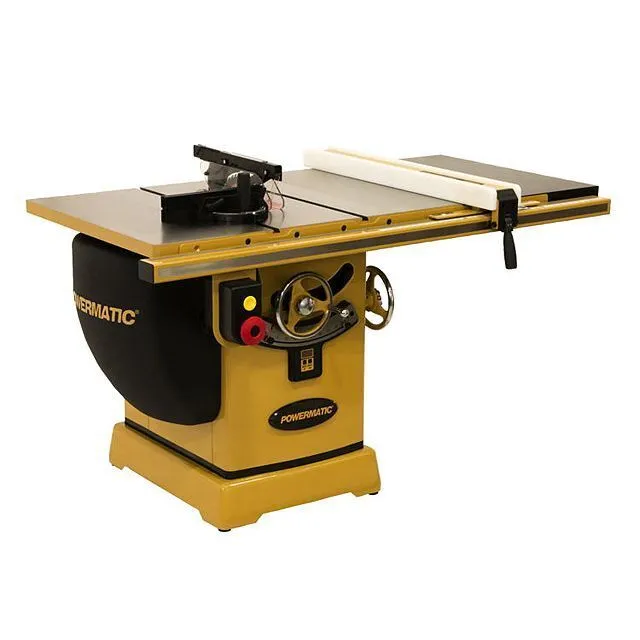

The award winning PM2000 table saw sets a new standard for innovation with an array of patented features and massive body design. It boasts the heaviest cast iron base in its class that virtually eliminates table vibration.
| Blade Diameter | 10" | 254 mm |
| Arbor Diameter | 0.625" | 15.875 mm |
| Arbor Speed | 4300 rpm | 4,300 RPM |
| Maximum Depth of Cut | 3.125" | 79.375 mm |
| Maximum Depth of Cut at 45 Degrees | 2.125" | 53.975 mm |
| Maximum Rip Right of Blade | 30" | 762 mm |
| Maximum Rip Left of Blade | 13.5" | 342.9 mm |
| Table in Front of Saw Blade at Maximum Depth of Cut | 11.25" | 285.75 mm |
| Maximum Width of Dado | 0.8125" | 20.638 mm |
| Maximum Diameter of Dado | 8" | 203.2 mm |
| Table Height from Floor | 34.25" | 869.95 mm |
| Table Type | Cast Iron | Cast Iron |
| Table Size with Standard Extension (L x W inches) | 42 x 30-1/2 | 42 x 30-1/2 |
| Table Size without Wings (L x W/in.) | 22 x 30-1/2 | 22 x 30-1/2 |
| Dust Collection Minimum CFM Required | 350 | 350 |
| Dust Port Diameter OD | 4" | 101.6 mm |
| Motor Power | 5 HP 1phase 230V | 5 HP 1phase 230V |
| Motor Amps | 21 | 21 |
| Miter Gauge Type | Deluxe micro adjustable with Aluminum extruded fence | Deluxe micro adjustable with Aluminum extruded fence |
| Dimensions | 65 x 37 x 39 | 65 x 37 x 39 |
| Weight | 627 | 627 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR – For Commercial Use
WARRANTY: 2 YEAR – For Industrial Purposes
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
