Integrated Digital Read Out for precise bevel cuts
Newly designed integrated hydraulic castor system with greater travel than previous model
Matching beveled edge between table and extension wings
Newly designed Arbor lock for quick and easy blade changes
| Blade Diameter | 10" | 254 mm |
| Arbor Diameter | 0.625" | 15.875 mm |
| Arbor Speed | 4300 rpm | 4,300 RPM |
| Maximum Depth of Cut | 3.125" | 79.375 mm |
| Maximum Depth of Cut at 45 Degrees | 2.125" | 53.975 mm |
| Maximum Rip Right of Blade | 50" | 1,270 mm |
| Maximum Rip Left of Blade | 13.5" | 342.9 mm |
| Table in Front of Saw Blade at Maximum Depth of Cut | 11.25" | 285.75 mm |
| Maximum Width of Dado | 0.8125" | 20.638 mm |
| Maximum Diameter of Dado | 8" | 203.2 mm |
| Table Height from Floor | 34.25" | 869.95 mm |
| Table Type | Cast Iron | Cast Iron |
| Table Size without Wings (L x W/in.) | 22 x 30-1/2 | 22 x 30-1/2 |
| Dust Collection Minimum CFM Required | 350 | 350 |
| Motor Power | 3 HP 1phase 230V | 3 HP 1phase 230V |
| Motor Amps | 13 | 13 |
| Dimensions | 85 x 37 x 39 | 85 x 37 x 39 |
| Weight | 675 | 675 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR – For Commercial Use
WARRANTY: 2 YEAR – For Industrial Purposes

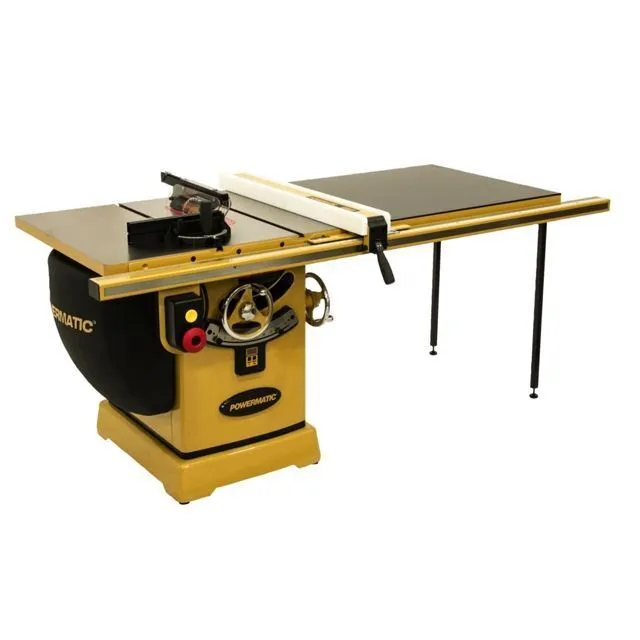

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
