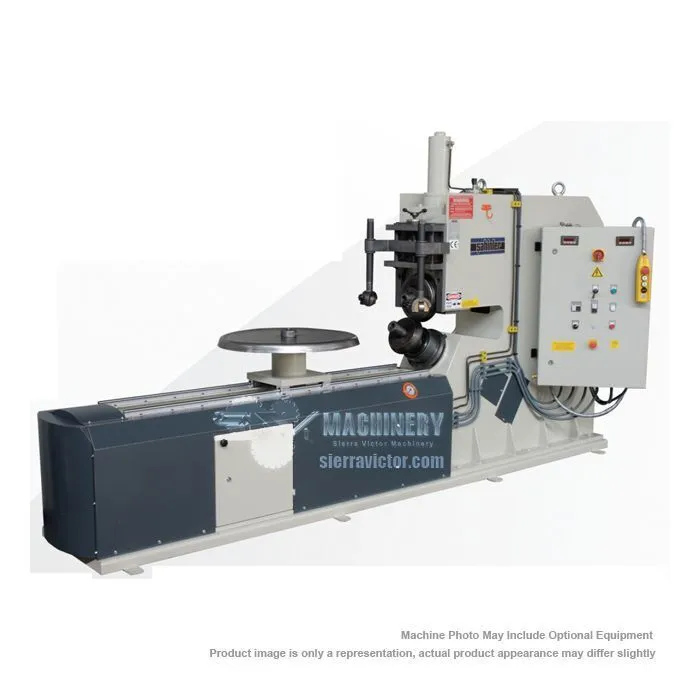

The Cole-Tuve SDK-6 has both Cutting and Flanging Operation on the Same Heads. Manually Adjustable Sheet Centering for Both Flat and Crowned Dish Flanging. Top And Bottom Flanging Rolls Powered in Rotation with Planetary Reducers.
| Maximum Capacity - Mild Steel | 1/4 in. | 1/4 in. |
| Maximum Capacity - Stainless Steel | 0.1875 in | |
| Max. Plate Diameter | 157 in. | 157 in. |
| Min. Plate Diameter | 17-5/16 in. | 17-5/16 in. |
| Max. Flanging Radius | 1.38 in. | 1.38 in. |
| Max. Flanging Length | 2 in. | 2 in. |
| Motor | 10.5 HP | 10.5 HP |
| Dimensions | 168 x 29 x 79 in. | 168 x 29 x 79 in. |
| Weight | 4510 lbs. | 4510 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
Flanging Rolls
R.B.: 30 mm
R.B.: 35 mm
Extra Set of Cutting Blades
