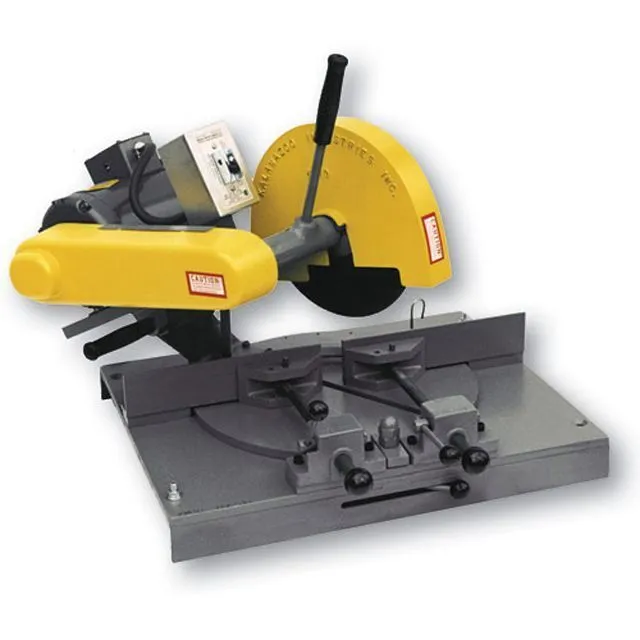

The Kalamazoo KM10-3 10 inch abrasive mitre saw is versatile and heavy-duty that will mitre left/right and cut mild steel of various shapes quickly and efficiently. It has a powerful 3HP motor, rugged steel base, cast aluminum saw arm, and a 5/8th spindle arbor.
| Capacity - Solids 45° | 1.5" | 38.1 mm |
| Capacity - Shapes 45° | 2.5" | 63.5 mm |
| Abrasive Wheel Size | 10" | 254 mm |
| Power | 3 hp | 2.2 kW |
| Phase | 3-Phase | 3-Phase |
| Voltage | 230V or 440V (specify) | 230V or 440V (specify) |
| Amperage | 8.4 amps (230V) / 4.2 amps (440V) | 8.4 amps (230V) / 4.2 amps (440V) |
| Spindle Arbor | 5/8 in. | 5/8 in. |
| Spindle Speed | 3450 RPM | 3450 RPM |
| Dimensions | L 47 x W 37 x H 35 in. | L 47 x W 37 x H 35 in. |
| Weight | 250 lbs. | 250 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
WS-10: Work Stop for KM10
