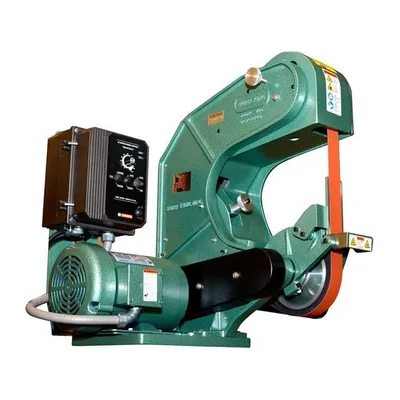

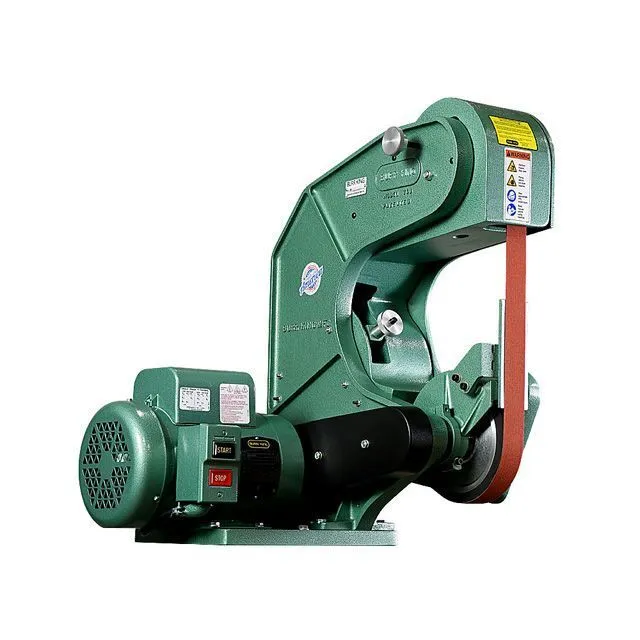

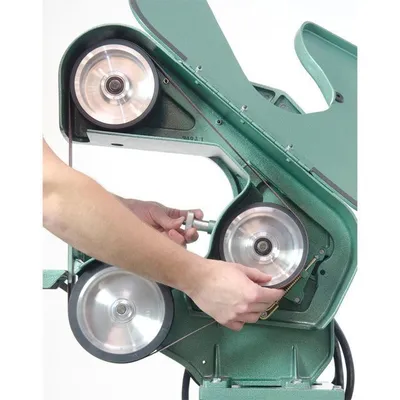

Model 760 is the largest example of our versatile three wheel belt grinders. Model 760 offers contact, backup platen, worktable and loose belt grinding at 8000 SFPM.
| Belt Width | 1.5" | 38.1 mm |
| Belt Length | 60" | 1,524 mm |
| Contact Wheel | 55 Duro Contact Wheel Hardness Standard 7″ x 1.5″ | 55 Duro Contact Wheel Hardness Standard 7″ x 1.5″ |
| Speed | Fixed | Fixed |
| Belt Speed | 8000 SFPM | 8000 SFPM |
| Platen | Steel Backup Platen: 2″ x 6″ x1/4″ | Steel Backup Platen: 2″ x 6″ x1/4″ |
| Throat Depth | 8.875" | 225.42 mm |
| Motor Power | 1.5 hp | 1.1 kW |
| Phase | 1-phase | 1-phase |
| Voltage | 120V | 120V |
| Hz | 60 | 60 |
| Shipping Weight | 110 lb | 49.9 kg |
| Dimensions | 26″ x 24″ x 23″ | 26″ x 24″ x 23″ |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
AVAILABLE MODELS
1-1/2 x 60 Belt
70100: 1.5 HP 120V/1 Phase, Fixed Speed 8000 SFPM
72110: 1.5 HP 120V/1 Phase, Variable Speed
2 x 60 Belt
75100: 1.5 HP 120V/1 Phase, Fixed Speed 8000 SFPM
77110: 1.5 HP 120V/1 Phase, Variable Speed
