The Model 720 presents a unique up front, two wheel, rear drive configuration that quickly accepts contact wheel finishing diameters from 3/8 inches to 3 inches in diameter.
| Belt Width | 2" | 50.8 mm |
| Belt Length | 72" | 1,828.8 mm |
| Contact Wheel | 55 Duro Contact Wheel Hardness Standard 1″ x 2″ | 55 Duro Contact Wheel Hardness Standard 1″ x 2″ |
| Speed | Variable Speed | Variable Speed |
| Belt Speed | 550-5500 SFPM | 550-5500 SFPM |
| Tension | Air | Air |
| Motor Power | 1.5 hp | 1.1 kW |
| Phase | 1-phase | 1-phase |
| Voltage | 120V | 120V |
| Hz | 50-60 | 50-60 |
| Shipping Weight | 190 lb | 86.2 kg |
| Dimensions | 36 x 20″ x 36″ | 36 x 20″ x 36″ |

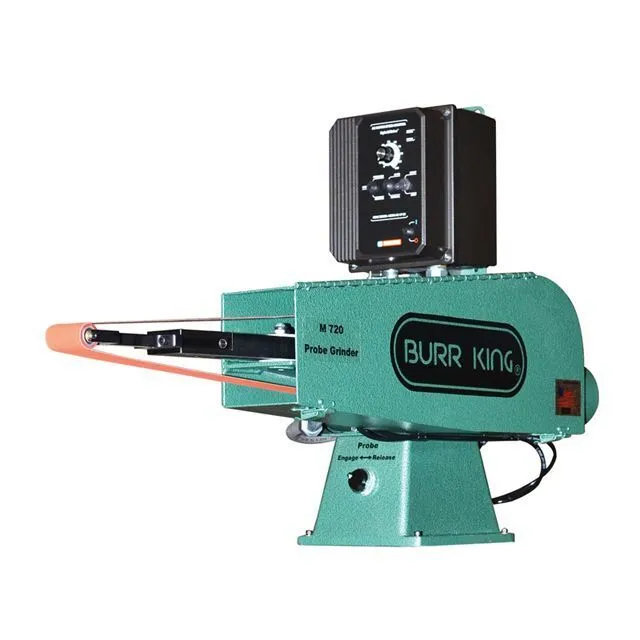

*Shown with Optional Variable Speed/Magnetic Starter
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Available Models:
16110A: 1.5 HP, 50-60Hz 120V/1 Phase, 550-5550 SFPM Variable Speed, Air Tension
16110M: 1.5 HP, 50-60Hz 120V/1 Phase, 550-5500 SFPM Variable Speed, Manual Tension
16300A: 1.5 HP, 60Hz, 120V/1 Phase, Fixed Speed 5500 SFPM, Air Tension
16300M: 1.5 HP, 60Hz 120V/1 Phase, 5500 SFPM Fixed Speed, Manual Tension
