Burr King's family of three wheel grinders provides maximum versatility. Contact wheel, platen, work rest support, and loose belt grinding are precision controlled with positive belt tracking, quick belt change, and linear belt tension.
| Belt Width | 1" | 25.4 mm |
| Belt Length | 42" | 1,066.8 mm |
| Contact Wheel | 4.75" | 120.65 mm |
| Contact Wheel | 55 Duro Contact Wheel Hardness Standard 4-3/4″ x 1″ | 55 Duro Contact Wheel Hardness Standard 4-3/4″ x 1″ |
| Speed | Fixed | Fixed |
| Belt Speed | 5300 SFPM | 5300 SFPM |
| Platen | Steel Backup Platen: 1-1/8″ x 5″ x1/8″ | Steel Backup Platen: 1-1/8″ x 5″ x1/8″ |
| Throat Depth | 5.5" | 139.7 mm |
| Motor Power | 0.8 hp | 0.6 kW |
| Phase | 1-phase | 1-phase |
| Voltage | 120V | 120V |
| Hz | 60 | 60 |
| Shipping Weight | 70 lb | 31.8 kg |
| Dimensions | 20″ x 17″ x 15″ | 20″ x 17″ x 15″ |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

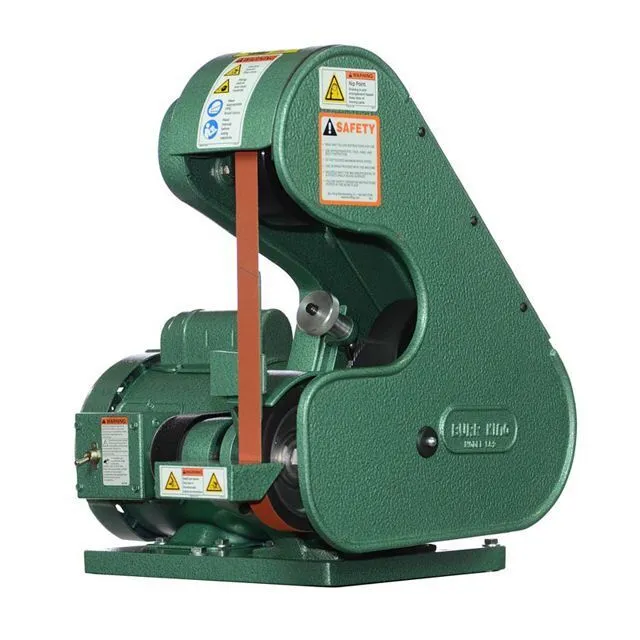

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
AVAILABLE MODELS:
56100: 3/4 HP 120V/1 Phase, Fixed Speed 5300 SFPM
57110: 3/4 HP 120V/1 Phase, Variable Speed
