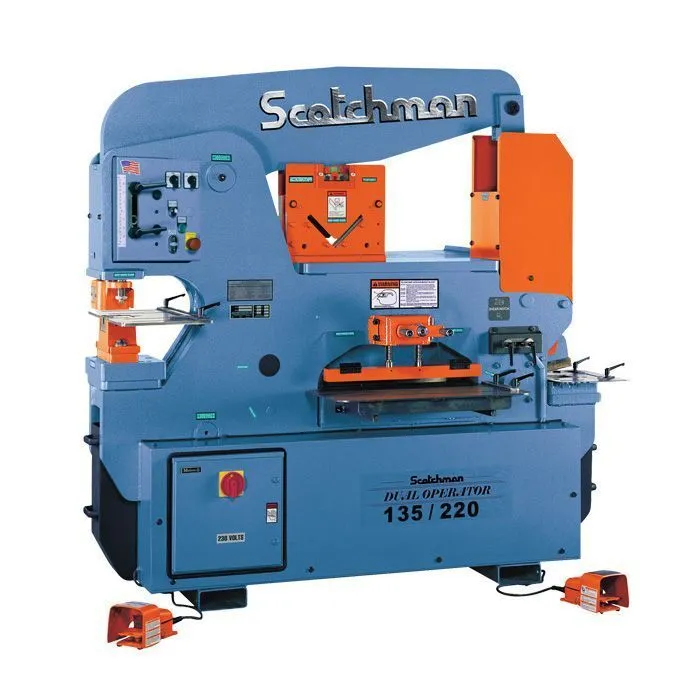

The Scotchman DO 135/220/24M dual operator has four built-in features that include a 135-ton punch (1-11/16” in 1"), a 6” x 6” x 1/2" angle shear, a 24” plate shear (1” x 12”, 1/2” x 24”) and a rectangle notcher. The Scotchman dual operators are designed with a hydraulic system that has two pumps to ensure full hydraulic pressure and full speed when two functions are running at full capacity. Scotchman offers several American-made, Dual Operator Models from 70 to 150 tons of punching power.
| Punch Tonnage | 135 T | 122,470.1 kg |
| Punch Max. Capacity | 1-11/16" in 1" | 1-11/16" in 1" |
| Flat Bar Shear | (Sabre Blade - Std) 220 ton, 1" x 12", 3/4" x 20", 1/2" x 24" | (Sabre Blade - Std) 220 ton, 1" x 12", 3/4" x 20", 1/2" x 24" |
| Flat Bar Shear Length | 24" | 609.6 mm |
| Angle Shear 90° | 6" x 6" x 1/2" | 6" x 6" x 1/2" |
| Angle Shear 45° | (with Bar Shear) 3" x 3" x 3/8", 4" x 4" x 1/2" | (with Bar Shear) 3" x 3" x 3/8", 4" x 4" x 1/2" |
| Rod Shear - Round Rod (Max.) | 1/4" to 1-1/4", 9 Cavity | 1/4" to 1-1/4", 9 Cavity |
| Rod Shear - Square Rod (Max.) | 1/4" to 1", 1 Cavity | 1/4" to 1", 1 Cavity |
| Square Tube Shear | 1/2" to 2", 12 gauge | 1/2" to 2", 12 gauge |
| Unistrut Shear | Samples Required | Samples Required |
| Channel Shear | 2" to 6" adj. | 2" to 6" adj. |
| V Notcher | 3" x 3" x 1/2" / (90°) 6" x 6" x 5/16" | 3" x 3" x 1/2" / (90°) 6" x 6" x 5/16" |
| Pipe Notcher | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" | Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2" |
| Notching in Leg of Channel | 6" to 10" | 6" to 10" |
| Brake - 12 inch | 90 T | 81,646.7 kg |
| Brake - 24 inch | 70 T | 63,503 kg |
| Open End Brake | Max. 1/4" x 5" Flat or Angle Iron | Max. 1/4" x 5" Flat or Angle Iron |
| Offset Die Holder | Max. 40 ton | Max. 40 ton |
| Picket Tool | 1/2", 3/4", 1", 16 gauge | 1/2", 3/4", 1", 16 gauge |
| Special Tooling | 4" Max. Dia. | 4" Max. Dia. |
| Throat Depth | 12" | 304.8 mm |
| Strokes Per Minute in Light Material | 1/4" stroke [Punch Station] | 1/4" stroke [Punch Station] |
| Strokes Per Minute in Heavy Material | 3/4" stroke [Punch Station] | 3/4" stroke [Punch Station] |
| Electrics | 3-Phase, 60hz | 3-Phase, 60hz |
| Hydraulics | 3,500/3,500 psi | 3,500/3,500 psi |
| Rated on | 65,000 PSI Tensile | A 36 Mild Steel | 65,000 PSI Tensile | A 36 Mild Steel |
| Shipping Weight | 6,404 lb | 2,904.8 kg |
| Dimensions | L- 77-1/4" x W-34" x H- 74-1/4" | L- 77-1/4" x W-34" x H- 74-1/4" |
Optional Voltages:
039908: DO 135/220-24M - 10 hp 3 ph 208V
039910: DO 135/220-24M - 10 hp 3 ph 230V
039935: DO 135/220-24M - 10 hp 3 ph 460V
039920: DO 135/220-24M - 10 hp 1 ph, 220V
DO 135/220-24M (3PH, 60HZ) Less Angle Shear
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional Items - Call for price:
Open End Brake
Pipe Notcher
90 degree V-Notcher
Tube Shear
Picket Tool
48" Back Gauge
Laser Light
12" & 24" Brake (*Back Gauge sold separately.)
Rectangle Notcher
Channel Shear
Urethane Stripper
6" x 6" Die Holder
Offset Die Holder
Rod Shear
Unequal Leg Angle Blades
Hydraulic Hold Down
Brake Table with Scale and Squaring Arm. 12" and 24" Brakes.
Brake Length Gauge with Scale 12" & 24" Brakes
Unistrut Shear
Multi-Loc Punch Gauging Table 36" and 85" Extensions Available
24" x 5' Conveyor with Angle Iron Support attached to DO70/110
Mandrel Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Round Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Punch Table Extension
Angle Iron Miter Guide
Weld Coupon Bender
Flatten and Trim Tube Punch (custom tooling)
Other styles available in accessories/custom punch and dies
Tool Table Extension includes Punch & Die Storage Drawer (65+Ton)
*Punches & Dies sold separately.
LED Light. Available on punch station and shear station.
