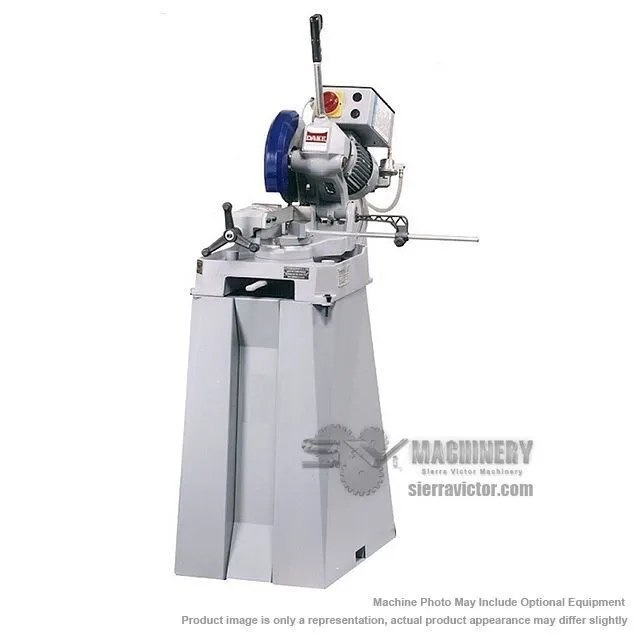

The DAKE Technics 250 manual cold saw is designed to cut without sparks and will leave the metal cool to the touch. A mechanical coolant pump with flow control is included with this sparkless metal cutting saw. Head rotates 45º right and left of center for mitering.
| Material Type | Ferrous/Non-ferrous/Plastics | Ferrous/Non-ferrous/Plastics |
| Max. Blade Diameter | 10" | 254 mm |
| Tubing Round at 45° | 2-23/64 in. | 2-23/64 in. |
| Tubing Round at 90° | 2-9/16 in. | 2-9/16 in. |
| Solid Round at 45° | 1-3/8 in. | 1-3/8 in. |
| Solid Round at 90° | 1-37/64 in. | 1-37/64 in. |
| Tubing Rectangle at 45° | 2-23/64 x 1-49/64 in. | 2-23/64 x 1-49/64 in. |
| Tubing Rectangle at 90° | 3-35/64 x 1-49/64 in. | 3-35/64 x 1-49/64 in. |
| Tubing Square at 45° | 1-31/32 in. | 1-31/32 in. |
| Tubing Square at 90° | 2-11/64 in. | 2-11/64 in. |
| Blade Speed | 44 RPM | 44 RPM |
| Motor | 1.2 HP | 1.2 HP |
| Voltage | 110v, 1-phase | 110v, 1-phase |
| Cutting Ability | Ferrous/non-ferrous/plastics | Ferrous/non-ferrous/plastics |
| Work height | 37" | 939.8 mm |
| Dimensions | H 61 in. x W 22 in. x D 36 in. | H 61 in. x W 22 in. x D 36 in. |
| Weight | 378 lbs. | 378 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
Blade Starter Pack (3 10" blades)
301644: 78" Loading Table
301645: 78" Unloading Table
