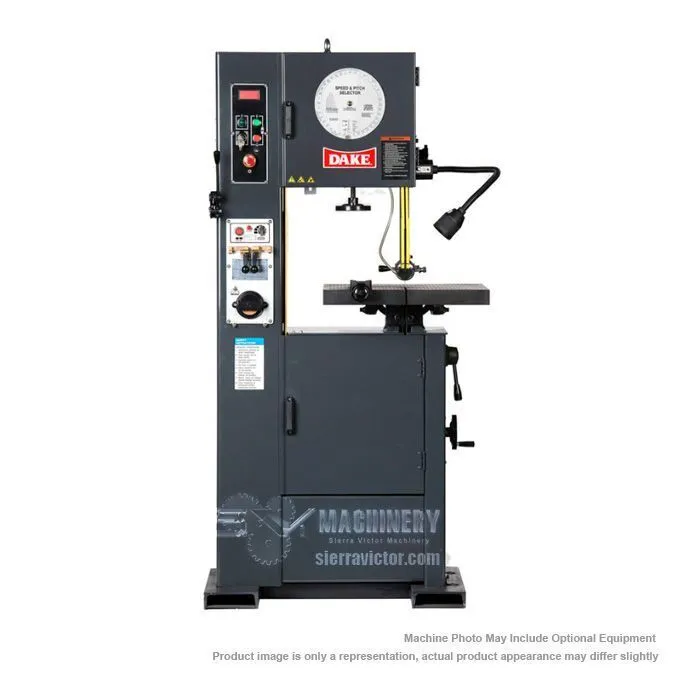

NEW DAKE V-16

Florida, United States
Asking Price
USD $10,642.50
1 available
3,864Listings|9Followers
Overview
Vertical Band Saws

The heavy duty DAKE V-16 industrial vertical bandsaw is designed for large production pieces. A 16" capacity, multi-tilting table, and variable speeds offer cutting capabilities for many applications. Complete with a built in welder/grinder/cutter this saw is sure to get the job done.

Specs
Throat Depth
15.5"
393.7 mm
Blade Length
123-1/2 in.
123-1/2 in.
Blade Width
1/8 - 5/8 in.
1/8 - 5/8 in.
Band Wheels
2
2
Band Wheels Size
16"
406.4 mm
Saw Blade Speeds
82-3,950 fpm
82-3,950 fpm
Table Tilt
15° R / 12° L; 8° F/B
15° R / 12° L; 8° F/B
Motor
2 HP
2 HP
Power
220v (440v Optional **)
220v (440v Optional **)
Maximum Work Height
10"
254 mm
Work Table Height
39"
990.6 mm
Work Table Dimensions
21-1/2 x 24 in.
21-1/2 x 24 in.
Dimensions
37 x 26-1/2 x 72-1/2 in.
37 x 26-1/2 x 72-1/2 in.
Weight
904 lbs.
904 lbs.

** 440V model requires step-down transformer for operation (part number: 300674) Sold Separately

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional items - Call for price:
300674: 440V External Transformer
77178: Mist System
