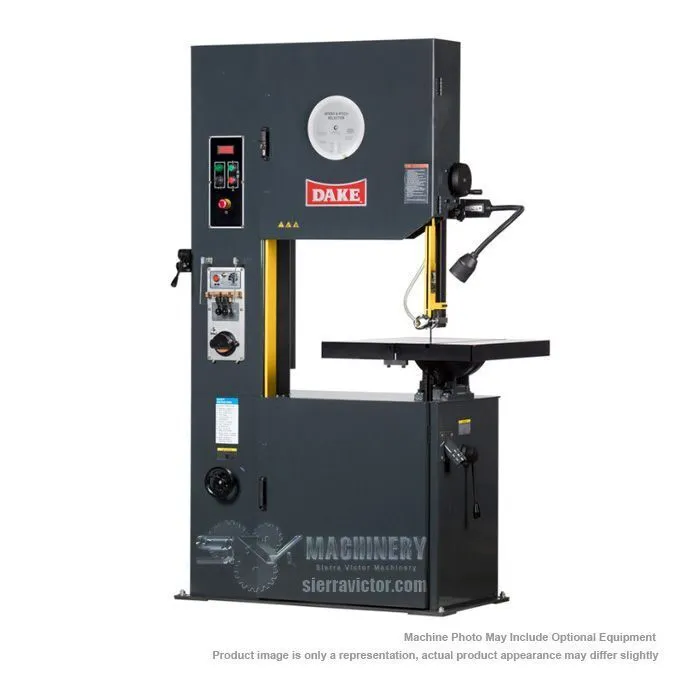

NEW DAKE V-26

Florida, United States
Asking Price
USD $17,374.50
1 available
3,852Listings|9Followers
Overview
Vertical Band Saws

The heavy duty DAKE V-26 vertical bandsaw is designed for large production pieces. A 26" capacity, multi-tilting table, and variable speeds offer cutting capabilities for many applications. Variable Speeds with 50 - 415 feet per minute in low range and 550 - 5,000 feet per minute in the high range.

Specs
Throat Depth
26"
660.4 mm
Blade Length
184-1/4 in.
184-1/4 in.
Blade Width
1/4 - 1 in.
1/4 - 1 in.
Band Wheels
2
2
Band Wheels Size
26.25"
666.75 mm
Blade Speeds - Low Range
Low 50-415
Low 50-415
Blade Speeds - High Range
550-5000 fpm
550-5000 fpm
Table Tilt
45° R / 10°L
45° R / 10°L
Motor
3 HP
3 HP
Power
220v
220v
Maximum Work Height
13"
330.2 mm
Work Table Height
39.375"
1,000.1 mm
Work Table Dimensions
23-1/2 x 27-1/2 in.
23-1/2 x 27-1/2 in.
Dimensions
51 x 32 x 84 in.
51 x 32 x 84 in.
Weight
1,540 lbs.
1,540 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

* 440V model requires step-down transformer for operation (part number: 300674) Sold Separately

Optional items - Call for price
300674: 440V External Transformer
77178: Mist System
