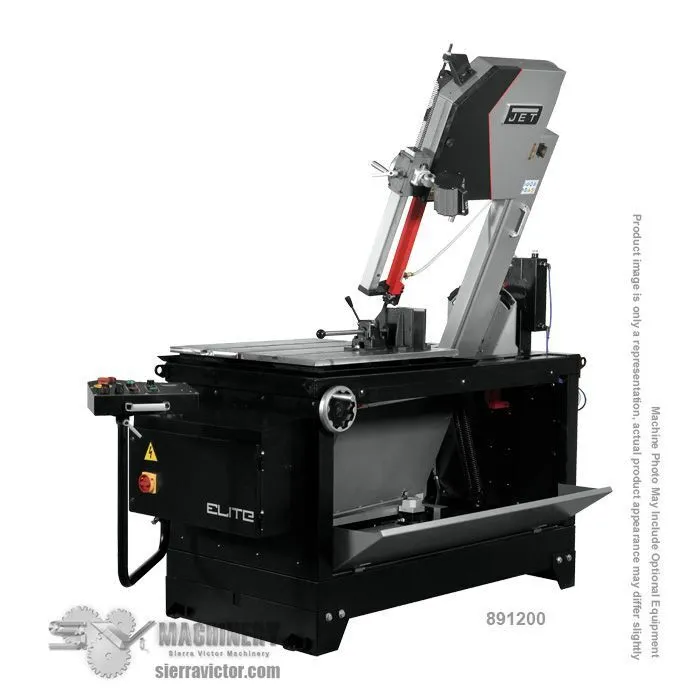

The Elite EVTBS-16" EVS Vertical Tilt Frame Bandsaw is the answer to your shops needs.The 3 degree forward approach angle allows for increased efficiency in cutting structural materials. Inverter drive with speed range of 76-30 SFPM and a Digital Readout to always let you know what speed you are at.
| Capacity - Round | 13.25 / 16 / 11.5 in. (45° R/90°/45°L) | 13.25 / 16 / 11.5 in. (45° R/90°/45°L) |
| Capacity - Square | 13.25 x 13.25 / 16 x 16 / 11.5 x 11.5 in. (45° R/90°/45°L) | 13.25 x 13.25 / 16 x 16 / 11.5 x 11.5 in. (45° R/90°/45°L) |
| Capacity - Rectangular | 13.25 x 16 / 20 x 16 / 11.5 x 16 in. (45° R/90°/45°L) | 13.25 x 16 / 20 x 16 / 11.5 x 16 in. (45° R/90°/45°L) |
| Throat Depth | 16" | 406.4 mm |
| Max. Work Height | 39.75" | 1,009.6 mm |
| Blade Size | 1-1/16 x 0.035 x 168-1/2 4/6T | 1-1/16 x 0.035 x 168-1/2 4/6T |
| Blade Wheel Diameter | 18.046" | 458.37 mm |
| Saw Blade Speeds | 76-430 sfpm (Electronic Variable Speed) | 76-430 sfpm (Electronic Variable Speed) |
| Motor | 2 HP | 2 HP |
| Power | 230v, 3-Phase | 230v, 3-Phase |
| Coolant Motor | 32W | 32W |
| Coolant Tank | 60 L | 15.9 gal |
| Tee Slots | 0.75" | 19.05 mm |
| Working Height (in.) | 39.75" | 1,009.6 mm |
| Working Surface | 29-1/2 x 14-3/16 in. | 29-1/2 x 14-3/16 in. |
| Miter Angle | 45 ° - 90° - 45° | 45 ° - 90° - 45° |
| Max. Vise Opening | 17.5" | 444.5 mm |
| Vise Height | 5.9" | 149.86 mm |
| Feed Force | 100 lb | 45.4 kg |
| Net Weight | 1,408 lb | 638.7 kg |
| Gross Weight | 1,584 lb | 718.5 kg |
| Dimensions | 94-1/2 x49-1/8 x 90-1/2 in. | 94-1/2 x49-1/8 x 90-1/2 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts & Labor
