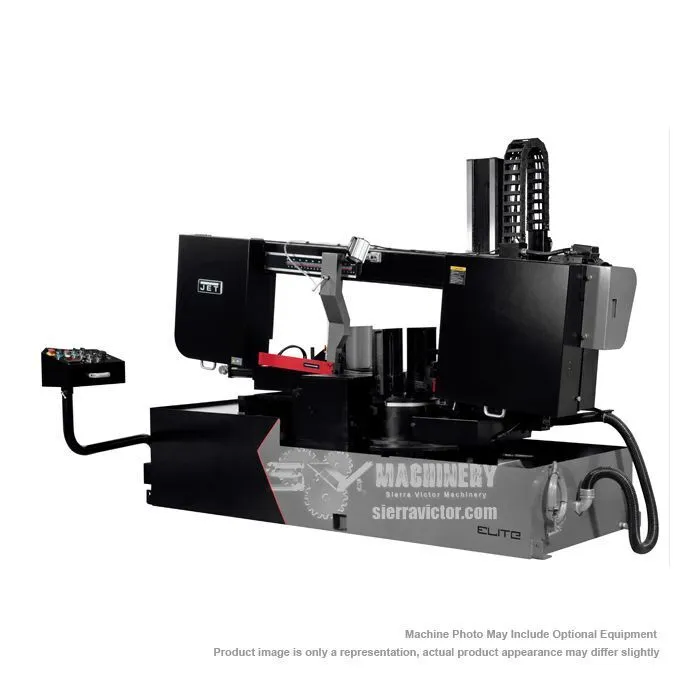

With features unmatched, the JET Elite ECB-1833DMEVS-460 Dual Mitering , Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease. Electronic Variable Speed from 50-297 SFPM. Semi-auto on saw bow lifting and hydraulic vise.
| Cutting Capacity | 18 x 33 in. (W x D) | 18 x 33 in. (W x D) |
| Round at 90° | 15" | 381 mm |
| Square at 90° | 18 x 18 in. | 18 x 18 in. |
| Rectangle at 90° | 18 x 31-1/2 in. | 18 x 31-1/2 in. |
| Round at 45° | 18" | 457.2 mm |
| Square at 45° | 18 x 18 in. | 18 x 18 in. |
| Rectangle at 45° | 18 x 20-13/16 in. | 18 x 20-13/16 in. |
| Round at 60° | 18" | 457.2 mm |
| Square at 60° | 15 x 15 in. | 15 x 15 in. |
| Rectangle at 60° | 18 x 14-29/32 in. | 18 x 14-29/32 in. |
| Blade Wheel Diameter | 22.8" | 579.12 mm |
| Blade Length | 240" | 6,096 mm |
| Blade Speed | 50-300 sfpm | 50-300 sfpm |
| Blade Motor | 7-1/2 HP | 7-1/2 HP |
| Power | 460v, 3-Phase | 460v, 3-Phase |
| Prewired | 460v | 460v |
| Coolant Motor | 1/8 HP, 460v, 3-Phase | 1/8 HP, 460v, 3-Phase |
| Bed/Table Height | 33.46" | 849.88 mm |
| Throat Depth | 18 in. | 18 in. |
| Shipping Weight | 5,500 lb | 2,494.8 kg |
| Dimensions | 110 x 75 x 83 in. | 110 x 75 x 83 in. |
| Weight | 5,060 lbs. | 5,060 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts & Labor
