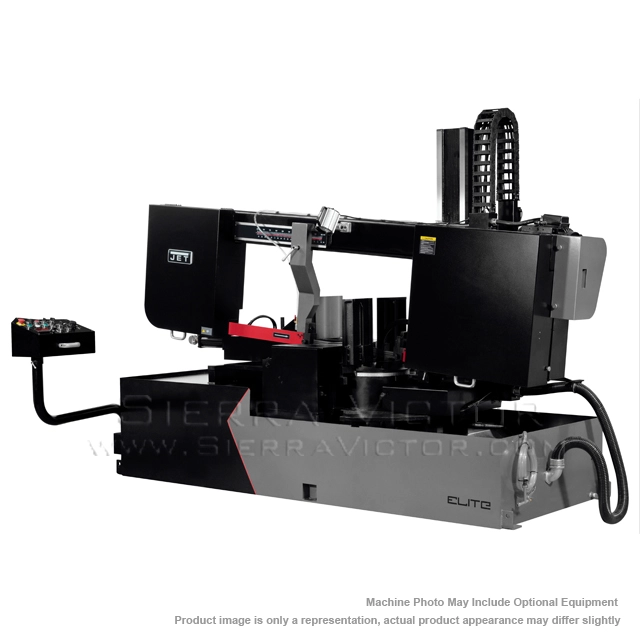

With features unmatched, the JET Dual Mitering, Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease.
| Cutting Capacity | 18 x 33 in. | 18 x 33 in. |
| Round at 90° | 15" | 381 mm |
| Square at 90° | 18 x 18 in. | 18 x 18 in. |
| Rectangle at 90° | 18 x 31-1/2 in. | 18 x 31-1/2 in. |
| Round at 45° | 18" | 457.2 mm |
| Square at 45° | 18 x 18 in. | 18 x 18 in. |
| Rectangle at 45° | 18 x 20-13/16 in. | 18 x 20-13/16 in. |
| Round at 60° | 18" | 457.2 mm |
| Square at 60° | 15 x 15 in. | 15 x 15 in. |
| Rectangle at 60° | 18 x 14-29/32 in. | 18 x 14-29/32 in. |
| Blade Size | 22.8 | 22.8 |
| Blade Length | 240" | 6,096 mm |
| Blade Speed | 50-300 sfpm | 50-300 sfpm |
| Blade Motor | 7.5 HP | 7.5 HP |
| Power | 230v, 3-Phase | 230v, 3-Phase |
| Prewired | 230v | 230v |
| Coolant Motor | 1/8 HP, 230v, 3-Phase | 1/8 HP, 230v, 3-Phase |
| Bed/Table Height | 33.5" | 850.9 mm |
| Throat Depth | 18 in. | 18 in. |
| Vise | 31.5 in. | 31.5 in. |
| Shipping Weight | 5,500 lb | 2,494.8 kg |
| Dimensions | 110 x 75 x 83 | 110 x 75 x 83 |
| Weight | 5,060 lbs. | 5,060 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts and Labor
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
