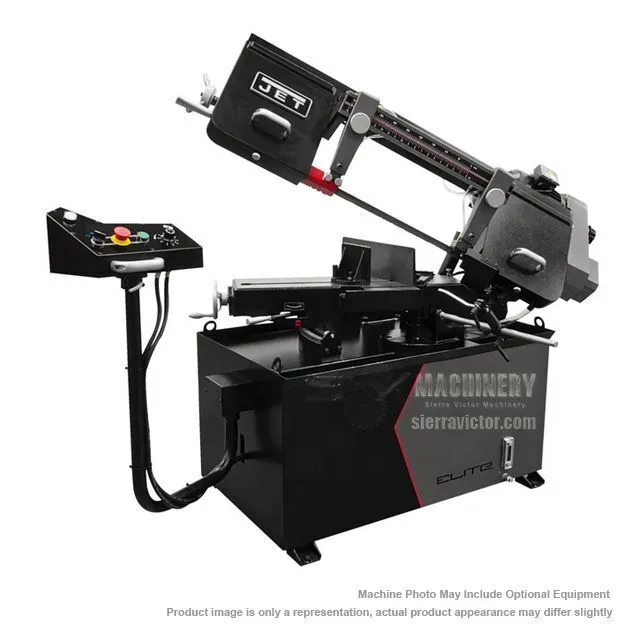

The JET ELITE EHB-8VSM 8x13 in. Variable Speed Mitering Bandsaws come standard with variable speed. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.
| Cutting Capacity | 8 x 13 in. (W x D) | 8 x 13 in. (W x D) |
| Round at 90° | 8 in. | 8 in. |
| Round at 45° | 8 in. | 8 in. |
| Square at 90° | 8 x 8 in. | 8 x 8 in. |
| Square at 45° | 8 x 8 in. | 8 x 8 in. |
| Rectangle at 90° | 13 x 5-1/4 in. | 13 x 5-1/4 in. |
| Rectangle at 45° | 8 x 8 in. or 2 x 9-1/2 in. | 8 x 8 in. or 2 x 9-1/2 in. |
| Blade Size | 1 x .035 x 144-1/2 in. | 1 x .035 x 144-1/2 in. |
| Blade Length | 144.5" | 3,670.3 mm |
| Blade Wheel Diameter | 11.625" | 295.27 mm |
| Blade Speed | 82 - 310 sfpm | 82 - 310 sfpm |
| Motor | 1.5 HP | 1.5 HP |
| Power | 115/230v, 1-Phase | 115/230v, 1-Phase |
| Amperage Draw | 23 (@ 115v, 1Ph) / 11 (@ 230v, 1Ph) | 23 (@ 115v, 1Ph) / 11 (@ 230v, 1Ph) |
| Bed Height | 30" | 762 mm |
| Vise Swivels | 45° | 45° |
| Head Movement | 45° | 45° |
| Dimensions | 62-1/2 x 23 x 48 in. | 62-1/2 x 23 x 48 in. |
| Weight | 924 lbs. | 924 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts & Labor
