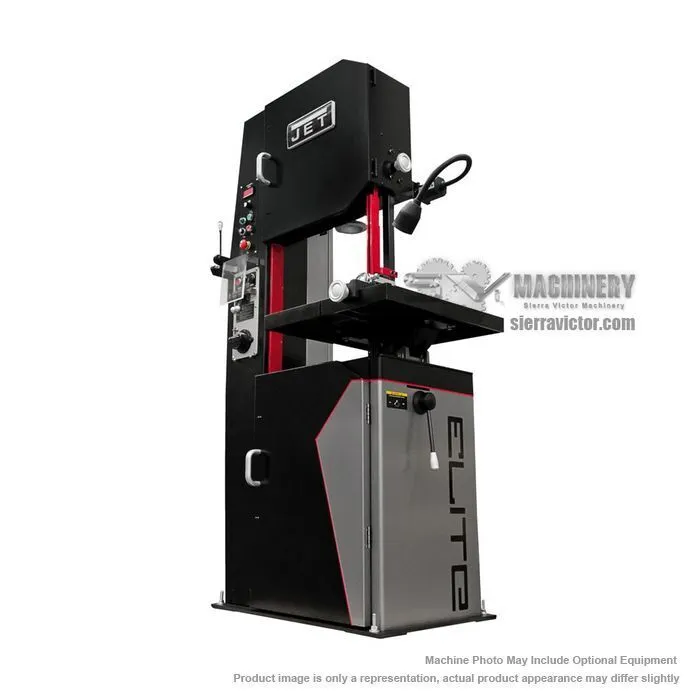

NEW JET EVBS-26

Florida, United States
Asking Price
USD $19,799.00
1 available
3,831Listings|9Followers
Overview
Vertical Band Saws

The Jet Elite EVBS-26 Vertical Bandsaw is the perfect blend of power and balance. Featuring variable speed drivetrains with precision balanced cast-iron blade wheels with a bonded rubber blade track, precision ground articulating table, 4.2 KVA Bi-Metal Blade stations and more.

Specs
Throat Depth
26"
660.4 mm
Height Capacity (Max.)
14"
355.6 mm
Blade Length
1/4 x .025 x 185-1/2 in.
1/4 x .025 x 185-1/2 in.
Blade Width
1/8 - 1 in. (Min. - Max.)
1/8 - 1 in. (Min. - Max.)
Saw Blade Speeds
Variable 50 - 5,000 sfpm
Variable 50 - 5,000 sfpm
Table Size
27-1/2 x 23-1/2 in.
27-1/2 x 23-1/2 in.
Table Height
39.375"
1,000.1 mm
Table Tilt
10° L & 45° R
10° L & 45° R
Motor
3 HP
3 HP
Power
230/460v, 3-Phase
230/460v, 3-Phase
Total Amp Draw
18 @ 230v, 3-Ph / 8 @ 460v, 3-Ph
18 @ 230v, 3-Ph / 8 @ 460v, 3-Ph
Welder Capacity
4.2 KVA Bi-Metal Welder
4.2 KVA Bi-Metal Welder
Dimensions
51 x 32 x 83-1/2 in.
51 x 32 x 83-1/2 in.
Weight
1,433 lbs.
1,433 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts and Labor
