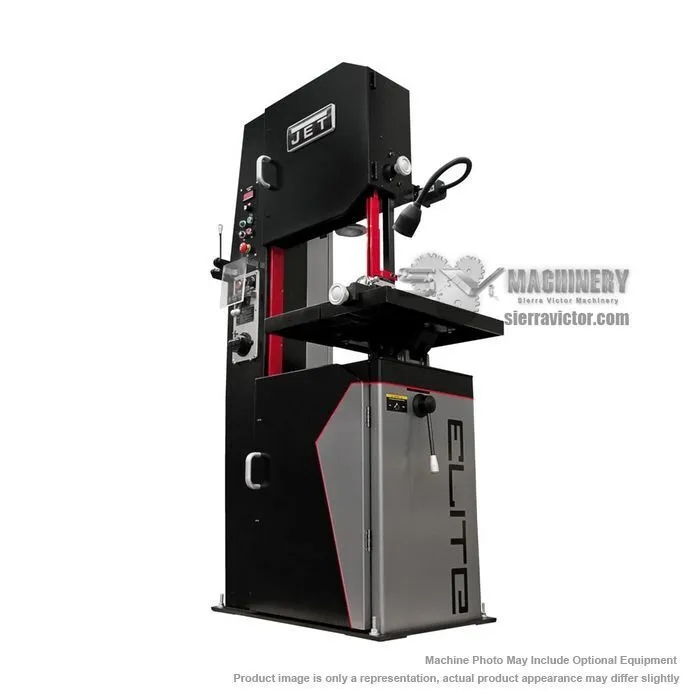

The Jet Elite EVBS-20 Vertical Bandsaw is the perfect blend of power and balance. Featuring variable speed drive trains with precision balanced cast-iron blade wheels with a bonded rubber blade track, precision ground articulating table, 4.2 KVA Bi-Metal Blade stations and more.
| Throat Depth | 20" | 508 mm |
| Height Capacity (Max.) | 13" | 330.2 mm |
| Blade Length | 1/4 x .025 x 151-1/2 in. | 1/4 x .025 x 151-1/2 in. |
| Blade Width | 1/8 - 1 in. (Min. - Max.) | 1/8 - 1 in. (Min. - Max.) |
| Saw Blade Speeds | Variable 50 - 5,000 sfpm | Variable 50 - 5,000 sfpm |
| Table Size | 24 x 22 in. | 24 x 22 in. |
| Table Height | 39.375" | 1,000.1 mm |
| Table Tilt | 10° L & 45° R | 10° L & 45° R |
| Motor | 2 HP | 2 HP |
| Power | 230v, 3-Phase | 230v, 3-Phase |
| Total Amp Draw | 18 @ 230v 3Ph | 18 @ 230v 3Ph |
| Welder Capacity | 4.2 KVA Bi-Metal Welder | 4.2 KVA Bi-Metal Welder |
| Dimensions | 40 x 29 x 77-1/2 in. | 40 x 29 x 77-1/2 in. |
| Weight | 1,102 lbs. | 1,102 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts and Labor
