New | in-Stock

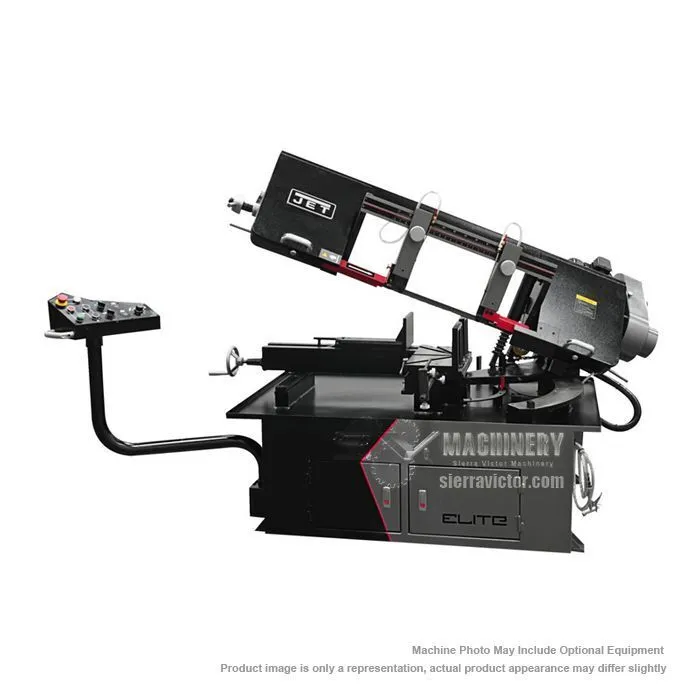

NEW JET EHB-1018VM

Florida, United States
Asking Price
USD $15,635.00
1 available
3,831Listings|9Followers
Overview
Horizontal Band Saws

The JET Elite EHB-1018VM Semi-Auto Variable Speed Dual Mitering Saw comes standard with variable speed. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.

Specs
Cutting Capacity
10 x 18 in.
10 x 18 in.
Round at 90°
10"
254 mm
Square at 90°
10 x 10 in.
10 x 10 in.
Rectangle at 90°
10 x 18 in.
10 x 18 in.
Round at 45°
10"
254 mm
Square at 45°
10 x 10 in.
10 x 10 in.
Rectangle at 45°
10 x 12 in.
10 x 12 in.
Round at 60°
6"
152.4 mm
Square at 60°
5-1/2 x 5-1/2 in.
5-1/2 x 5-1/2 in.
Rectangle at 60°
10 x 7 in.
10 x 7 in.
Blade Size
1 x .035 x 144 in.
1 x .035 x 144 in.
Blade Wheel Diameter
14"
355.6 mm
Blade Length
144"
3,657.6 mm
Blade Speed
53 - 257 sfpm
53 - 257 sfpm
Blade Motor
2 HP
2 HP
Power
230/460v, 3-Phase
230/460v, 3-Phase
Prewired
230v
230v
Amperage Draw
7 (@230v, 3Ph) / 3.5 (@460v, 3-Ph)
7 (@230v, 3Ph) / 3.5 (@460v, 3-Ph)
Head Movement
60°
60°
Bed/Table Height
27"
685.8 mm
Vise
Quick Positioning
Quick Positioning
Vise Opening
45"
1,143 mm
Dimensions
85 x 40 x 44 in.
85 x 40 x 44 in.
Weight
1,100 lbs.
1,100 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts and Labor

Equipped With

Optional Items - Call for price:
* JT9-891097: Bi-Metal Bandsaw Blade 1" x 0.035 x 144" (4/6T) For EHB-1018VM/H: $181.00
