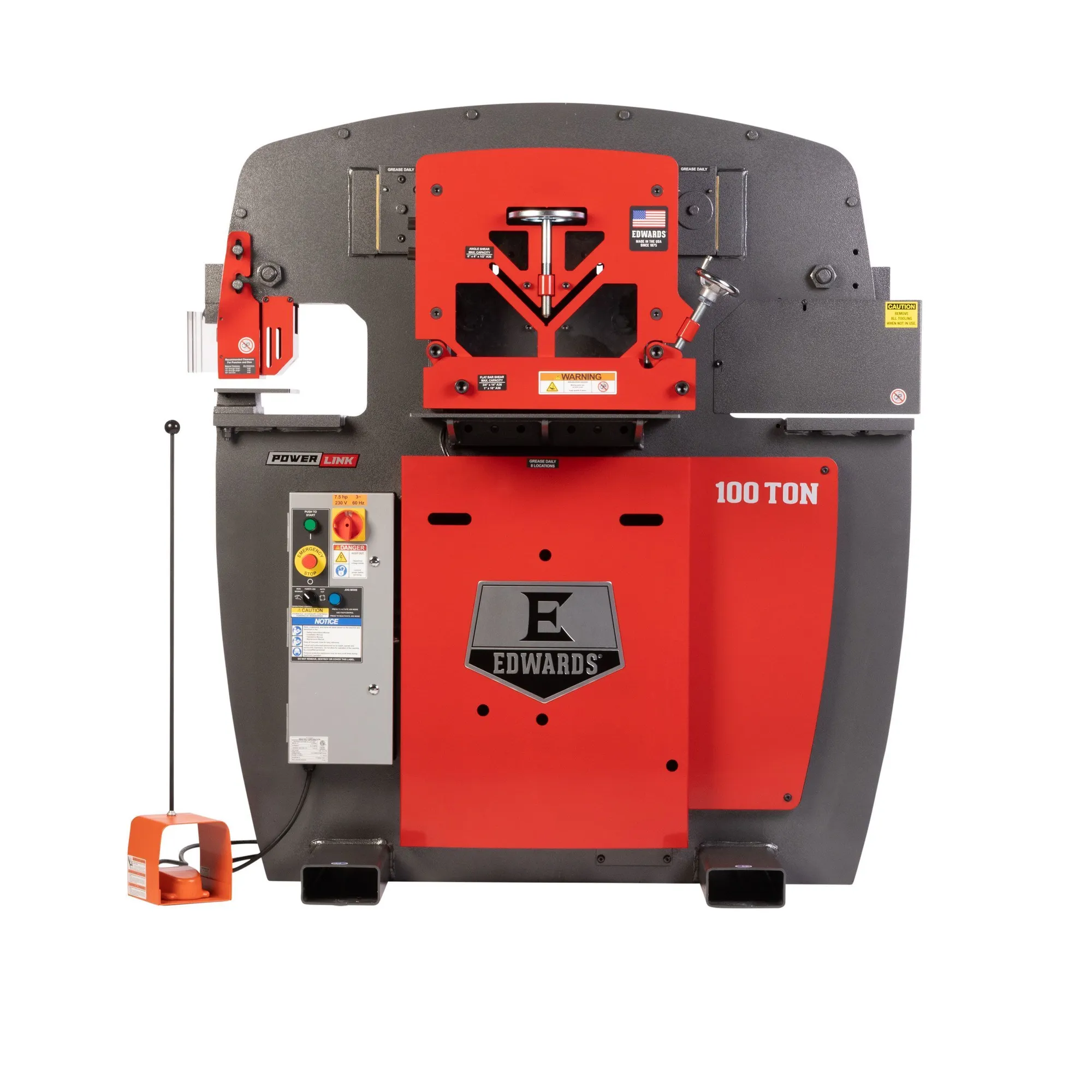

EDWARDS 100 Ton Hydraulic Ironworker ED9-IW100 has versatility and power.The standard features include a Punch Assembly, a 14" wide Flat Bar Shear, a high capacity Angle Shear and a universal open tooling station designed for optional Tooling Accessories allowing you to select the perfect tool for your needs.The optional Hydraulic Accessory Pack allows your Ironworker to act as a power source to our expanding line of innovative Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
| Punch Tonnage | 100 T | 90,718.6 kg |
| Punch Max. Capacity | 1-1/16 in. Dia. in 1 in. A36 | 1-1/16 in. Dia. in 1 in. A36 |
| Punch - Work Height | 39.063" | 992.19 mm |
| Punch - Throat Depth | 11" | 279.4 mm |
| Punch - Open Height | 8.75 | 8.75 |
| Punch - Shut Height | 6.9375 | 6.9375 |
| Punch - Stroke | 1.8125 | 1.8125 |
| Flat Bar Shear - Max. Capacity | 3/4 x 14 in., 1 x 10 in. | 3/4 x 14 in., 1 x 10 in. |
| Flat Bar Shear - Max. Round Capacity | 1-1/4 in. | 1-1/4 in. |
| Flat Bar Shear - Max. Square Capacity | 1-1/4 in. | 1-1/4 in. |
| Flat Bar Shear - Work Height | 37 in. | 37 in. |
| Open Station - Work Height | 37 in. | 37 in. |
| Open Station - Throat Depth | 14-3/4 in. | 14-3/4 in. |
| Open Station - Open Height | 8.75" | 222.25 mm |
| Open Station - Shut Height | 6.9375" | 176.21 mm |
| Open Station - Stroke | 1.8125" | 46.038 mm |
| Angle Shear - Maximum Capacity | 6 x 6 x 1/2 in. (Max. Size) | 6 x 6 x 1/2 in. (Max. Size) |
| Angle Shear - Work Height | 43.9375 | 43.9375 |
| Coper Notcher - Max. Capacity | 2-1/2 x 6 x 1/2 in.** | 2-1/2 x 6 x 1/2 in.** |
| Coper Notcher - Work Height | 42 in. ** | 42 in. ** |
| Motor | 7.5 HP | 7.5 HP |
| Electrics | 230v, 1-Phase | 230v, 1-Phase |
| Hydraulic Pump Size (GPM) | 10-1/2, 2 stage | 10-1/2, 2 stage |
| Oil Capacity/Reservoir | 17 gal | 64.4 L |
| Cylinder | 3-1/2 ram | 3-1/2 ram |
| Valve Pressure | 3500 psi | |
| Rated on | 65,000 PSI Tensile | 65,000 PSI Tensile |
| Dimensions | H 61-11/16 x W 56-1/8 x D 45 in. | H 61-11/16 x W 56-1/8 x D 45 in. |
| Weight | 4,650 lbs. | 4,650 lbs. |
** Optional Coper Notcher
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Models:
ED9-IW100-3P230-A: 100 Ton Ironworker 3 Phase, 230 Volt with PowerLink
ED9-IW100-3P208-A: 100 Ton Ironworker 3 Phase, 208 Volt with PowerLink
ED9-IW100-1P230-A: 100 Ton Ironworker 1 Phase, 230 Volt with PowerLink
ED9-IW100-3P460-A: 100 Ton Ironworker 3 Phase, 460 Volt with PowerLink
ED9-IW100-3P575-A: 100 Ton Ironworker 3 Phase, 575 Volt with PowerLink
ED9-10231512: 100 Ton Ironworker 1 Phase, 230 Volt, PowerLink, Coper Notcher
ED9-10203512: 100 Ton Ironworker 3 Phase, 208 Volt, PowerLink, Coper Notcher
ED9-10231522: 100 Ton Ironworker 1 Phase, 230 Volt, PowerLink, 10" Brake
ED9-10203522: 100 Ton Ironworker 3 Phase, 208 Volt, PowerLink, 10" Brake
ED9-10203022: 100 Ton Ironworker 3 Phase, 208 Volt, 10" Brake
ED9-10233522: 100 Ton Ironworker 3 Phase, 230 Volt, PowerLink, 10" Brake
ED9-10233522: 100 Ton Ironworker 3 Phase, 230 Volt, 10" Brake
