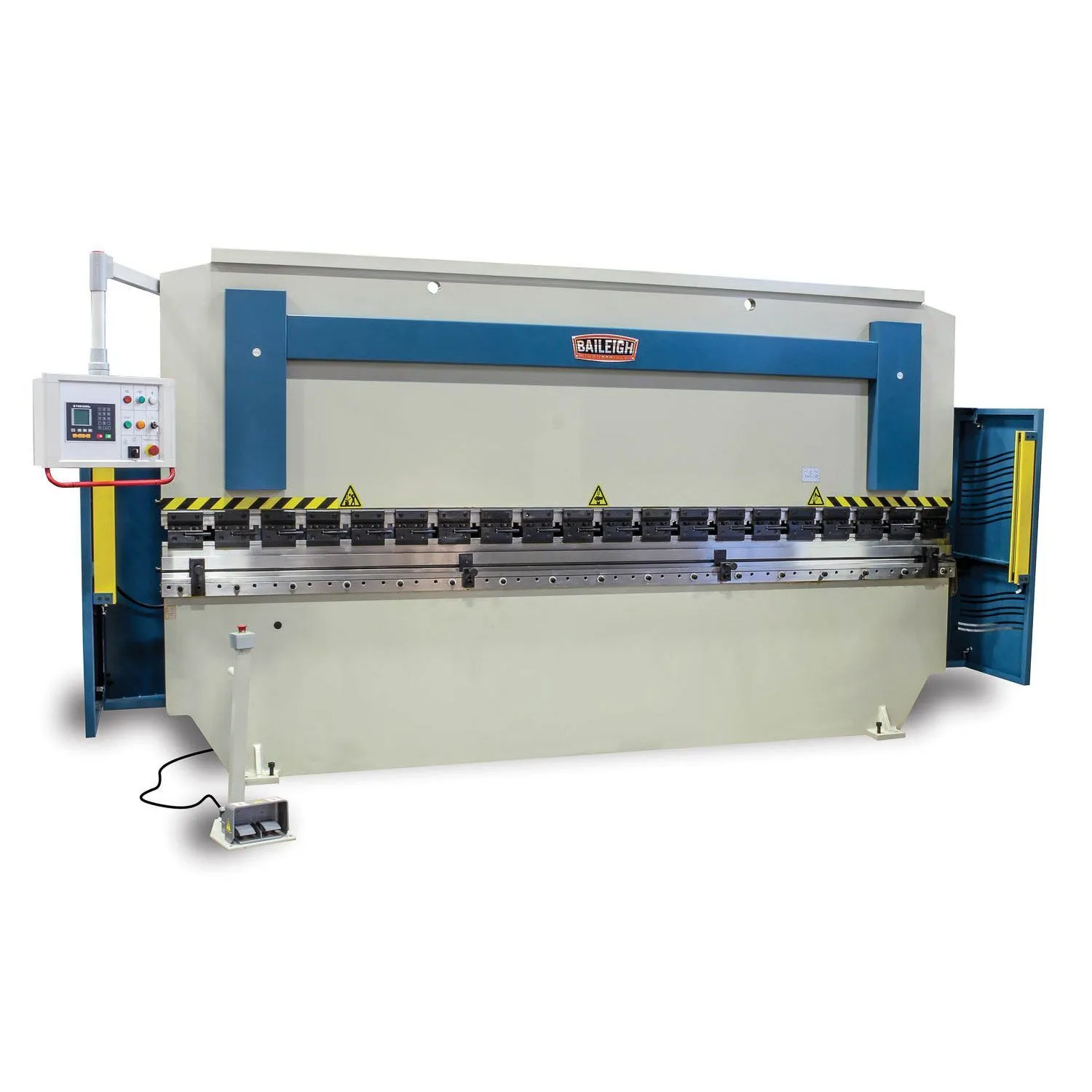

NEW BAILEIGH BA9-1000787

Florida, United States
Asking Price
USD $94,699.00
1 available
3,929Listings|11Followers
Overview
Press Brakes

This industrial press brake is built to last with thick steel plate construction. Easy to learn, the Estun E200 controller lets you program the bend depth and the back gauge. Delivers 140 tons of pressure across its 13-foot length. Runs on 220-volt 3-phase power.

Specs
Pressure/Tonnage
140 T
127.006 t
Table Length
157"
3,987.8 mm
Throat Depth
12.5"
317.5 mm
# Axis
2
2
Bending Length
157"
3,987.8 mm
Return Speed
2.4 in/sec.
59.9 mm/sec.
Approach Speed
2 in/sec.
50.8 mm/sec.
Bending Speed
0.6 in/sec.
15.2 mm/sec.
Distance Between Housings
124"
3,149.6 mm
Distance From Table To Ram
15.3"
388.62 mm
Stroke Distance
4.7"
119.38 mm
Back Gauge Motor
1/2 HP
1/2 HP
Back Gauge Capacity
23.62"
599.95 mm
Power
220V / 3-phase
220V / 3-phase
Shipping Dimensions (L/W/H)
185 x 73 x 97 in.
185 x 73 x 97 in.
Gross Weight
28,400 lb
12,882 kg
Shipping weight
19,000 lb
8,618.3 kg
Control
CNC (Estun E200)
CNC (Estun E200)
Dimensions
185 x 73 x 97 in.
185 x 73 x 97 in.
Weight
19,000 lbs.
19,000 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
