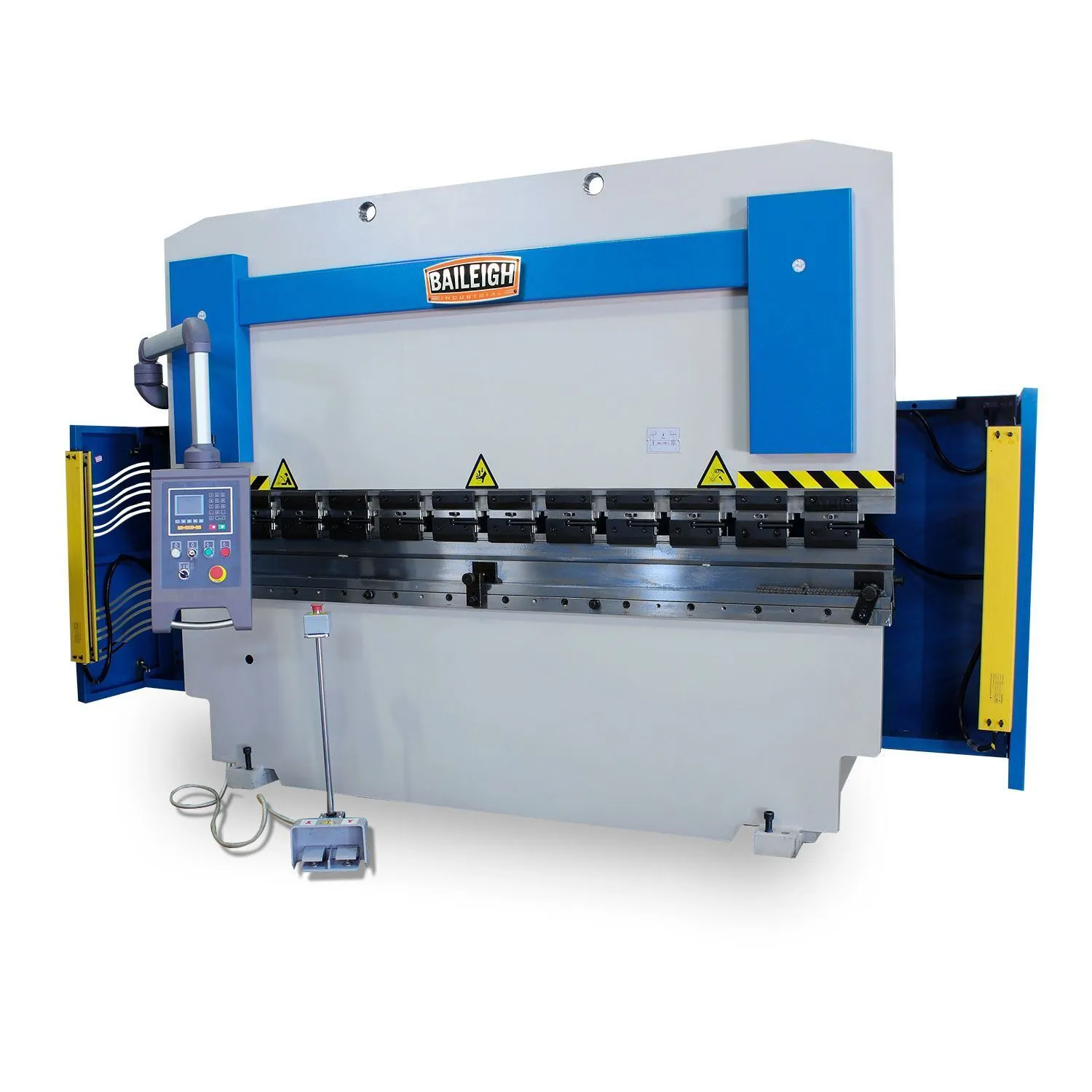

The BAILEIGH BP-7098CNC Hydraulic press brake is recommended for: Small-to-medium shops that want to improve the efficiency of their bending processes on a budget. Delivers 70 tons of pressure over its entire 98” length and Long enough to bend 8-foot pieces of mild steel. Runs on 220-volt 3-phase power.
| Pressure/Tonnage | 70 T | 63.503 t |
| Bending Length | 98" | 2,489.2 mm |
| # Axis | 2 | 2 |
| Throat Depth | 9.8" | 248.92 mm |
| Table Length | 98" | 2,489.2 mm |
| Return Speed | 2.4 in/sec. | 59.9 mm/sec. |
| Approach Speed | 2 in/sec. | 50.8 mm/sec. |
| Bending Speed | 0.6 in/sec. | 15.2 mm/sec. |
| Distance Between Housings | 80" | 2,032 mm |
| Distance From Table To Ram | 14" | 355.6 mm |
| Stroke Distance | 4.7" | 119.38 mm |
| Back Gauge Motor | 1/2 HP | 1/2 HP |
| Power | 220V / 3-phase | 220V / 3-phase |
| Shipping Dimensions (L/W/H) | 133 x 66 x 90 in. | 133 x 66 x 90 in. |
| Gross Weight | 10,850 lb | 4,921.5 kg |
| Control | CNC | CNC |
| Dimensions | 133 x 66 x 90 in. | 133 x 66 x 90 in. |
| Weight | 9300 lbs. | 9300 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
