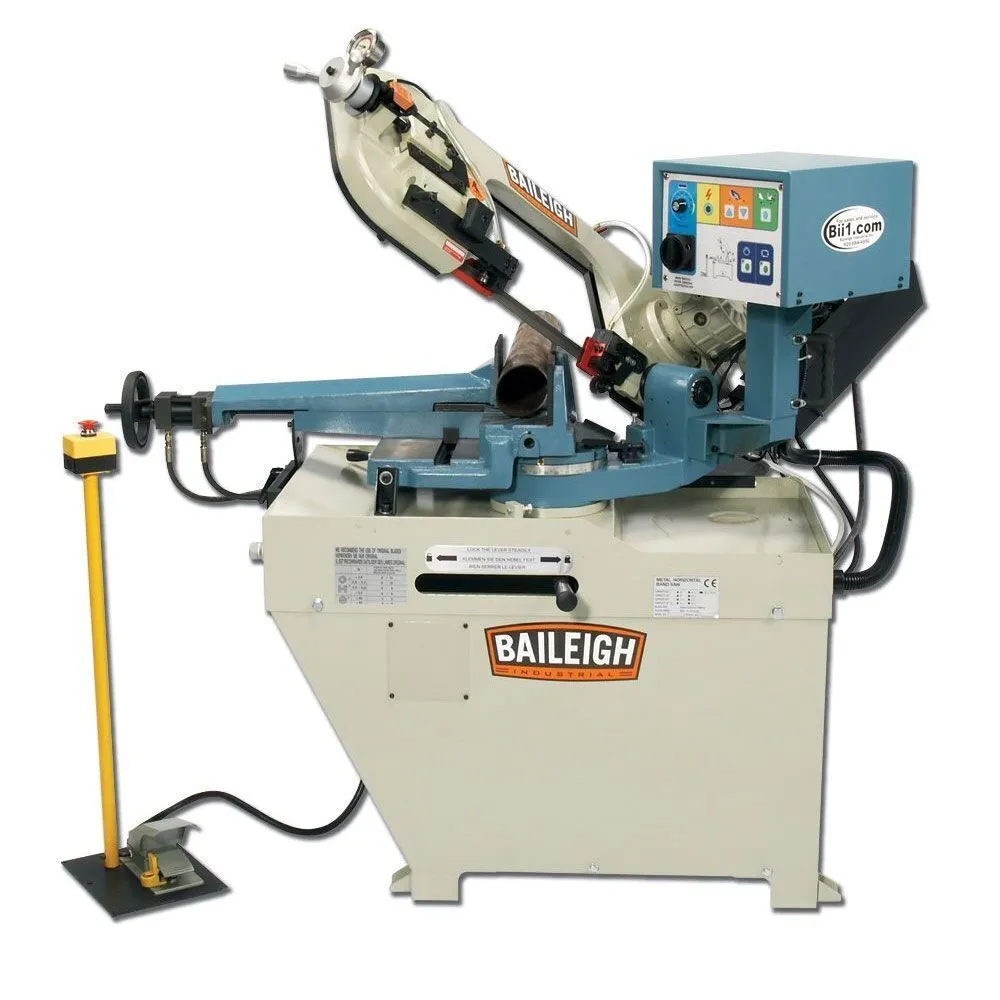

The Baileigh BS-260SA semi-automatic bandsaw manages faster turnaround times. We designed this model with foot pedal controls for production runs. Maximum capacity of 8.93” round at 90°. Dual-angle head cuts at up to 60° right and up to 45° left, making it one of the most versatile mitering band saws on the market.
| Cutting Capacity Round | 4.33 in. (45°L) | 4.33 in. (45°L) |
| Cutting Capacity Square | 4.33 in. (45°L) | 4.33 in. (45°L) |
| Cutting Capacity Rectangle | 6.3 x 4.33 in. (45°L) | 6.3 x 4.33 in. (45°L) |
| Round at 90° | 8.93" | 226.82 mm |
| Square at 90° | 8.66 in. | 8.66 in. |
| Rectangle at 90° | 10.59 x 4.33 in. | 10.59 x 4.33 in. |
| Round at 45° | 5.9" | 149.86 mm |
| Square at 45° | 5.7 in. | 5.7 in. |
| Rectangle at 45° | 7.87 x 4.92 in. | 7.87 x 4.92 in. |
| Round at 60° | 3.54" | 89.916 mm |
| Square at 60° | 3.34 in. | 3.34 in. |
| Blade Guide | Carbide x Roller | Carbide x Roller |
| Blade Speed | 66–280 fpm Variable | 66–280 fpm Variable |
| Blade Motor | 1.5 HP High Torque 1.1Kw (AC) | 1.5 HP High Torque 1.1Kw (AC) |
| Power | 110/220v, 1-phase | 110/220v, 1-phase |
| Bed/Table Height | 35" | 889 mm |
| Miter Adjustment | Dual Swivel Head | Dual Swivel Head |
| Miter Angle | 0 – 60°, 45°L | 0 – 60°, 45°L |
| Return | Hydraulic | Hydraulic |
| Descent Control | Pressure Assist Hydraulic | Pressure Assist Hydraulic |
| Drive | Gear | Gear |
| Dimensions | 62 x 44 x 63 in. | 62 x 44 x 63 in. |
| Weight | 890 lbs. | 890 lbs. |
