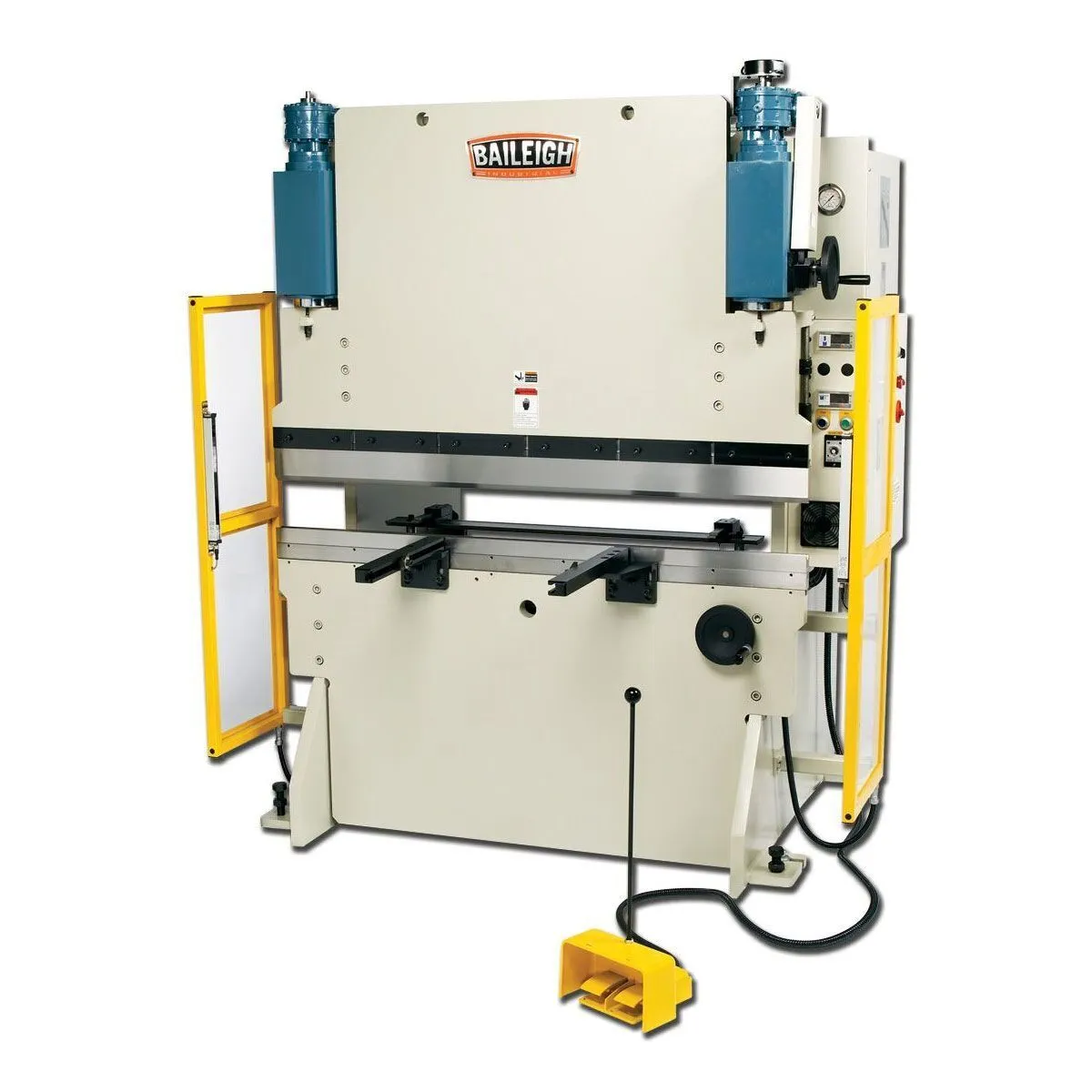

With its 6,000-pound steel frame, this Baileigh BP-5060NC hydraulic press brake makes crisp bends across its full 61” width. The stroke and back gauge are tied to encoders with DROs for precision. Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production. Recommended for: Small industrial shops, maintenance and R&D shops, and potentially larger industrial shops, if they need to make a specific part that fits this press brake’s width.
| Pressure Tonnage | 50 T | 45,359.3 kg |
| Bending Capacity Max Length | 61" | 1,549.4 mm |
| Bending Capacity Max Thickness | 0.118" | 2.9972 mm |
| Distance Between Housings | 49.21" | 1,249.9 mm |
| Distance From Table To Ram | 11.81" | 299.97 mm |
| Minimum Return Speed (In./Sec) | 2.4 in/sec. | 59.9 mm/sec. |
| Distance Per Stroke | 5.9" | 149.86 mm |
| Oil Reservoir Capacity (cc) | 28 gal | 106 L |
| Motor | 5 HP | 5 HP |
| Back Gauge Motor | 1/2 HP | 1/2 HP |
| Input Power | 220V / 3-phase | 220V / 3-phase |
| Shipping Dimensions (L x W x H) | 90 x 63 x 96 in. | 90 x 63 x 96 in. |
| Shipping Weight | 6,160 lb | 2,794.1 kg |
| Dimensions | 90 x 63 x 96 in. | 90 x 63 x 96 in. |
| Weight | 6160 lbs. | 6160 lbs. |
Prop 65: Cancer and Reproductive Harm
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
