New | in-Stock

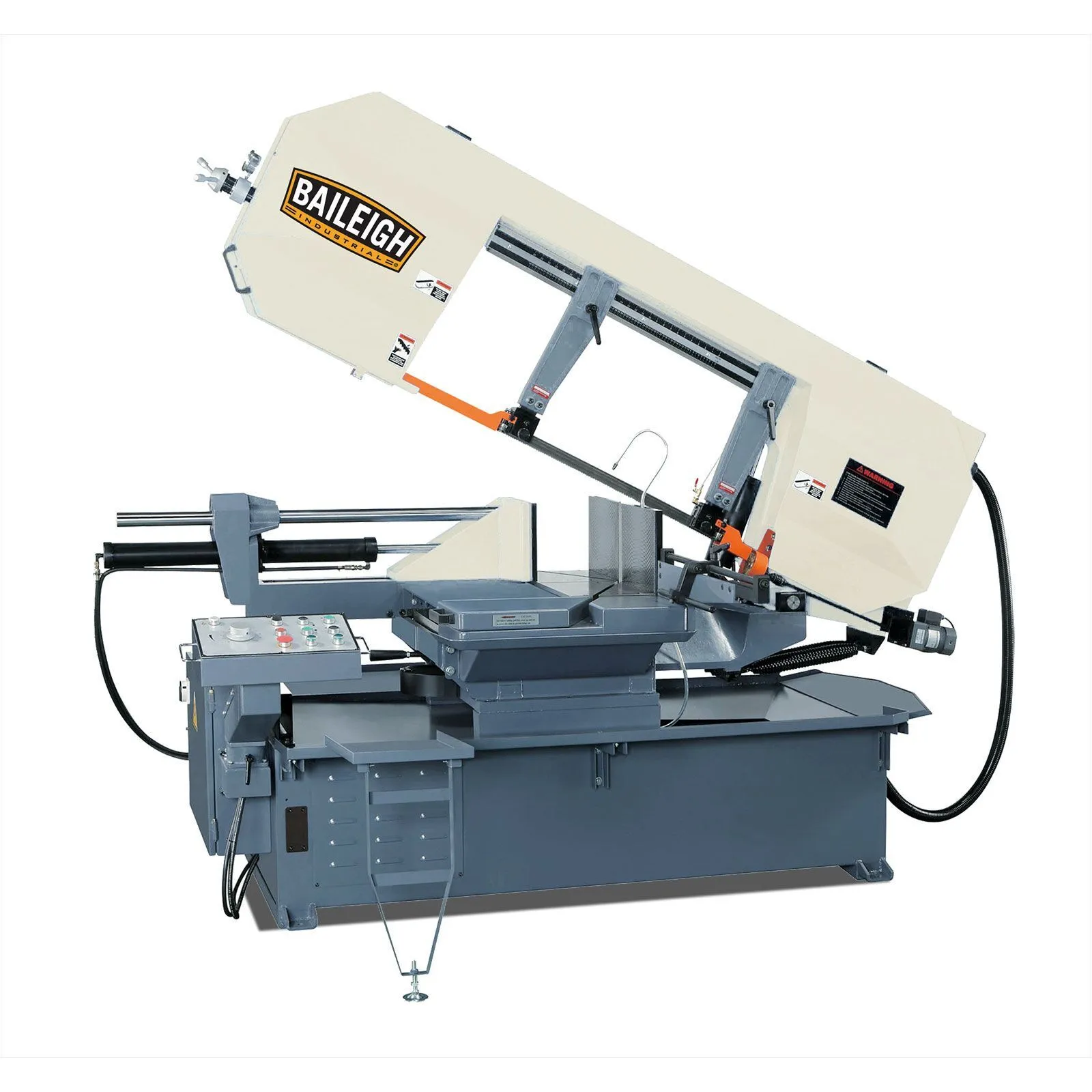

NEW BAILEIGH BS-24SA-DM

Florida, United States
Asking Price
USD $38,169.00
1 available
3,886Listings|10Followers
Overview
Horizontal Band Saws

This dual-mitering band saw doesn’t sacrifice on capacity. With a hydraulic system, cast iron bow, and steel frame, the BS-24SA-DM is built for decades of efficient production. Cuts 18” round or 15” x 24” rectangle at 90°. Swivel head miters 60° left and right.

Specs
Cutting Capacity Round
18 x 15.7 x 11 in. (90°/ 45° / 60°)
18 x 15.7 x 11 in. (90°/ 45° / 60°)
Round at 90°
18.1"
459.74 mm
Square at 90°
18.1 in.
18.1 in.
Rectangle at 90°
17 x 24 in.
17 x 24 in.
Round at 45°
17.5"
444.5 mm
Blade Guide
Carbide x Roller
Carbide x Roller
Blade Speed
106 - 317 fpm
106 - 317 fpm
Blade Motor
5 HP
5 HP
Power
220v, 3-Phase
220v, 3-Phase
Bed/Table Height
31.5"
800.1 mm
Miter Adjustment
Dual Miter Swivel Head
Dual Miter Swivel Head
Miter Angle
0 - 60° Left and Right
0 - 60° Left and Right
Return
Hydraulic
Hydraulic
Descent Control
Pressure Assist Hydraulic
Pressure Assist Hydraulic
Drive
Belt x Pulley
Belt x Pulley
Shipping Dimensions
111.4 x 44.9 x 73.2 in.
111.4 x 44.9 x 73.2 in.
Shipping Weight
3,234 lb
1,466.9 kg

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
