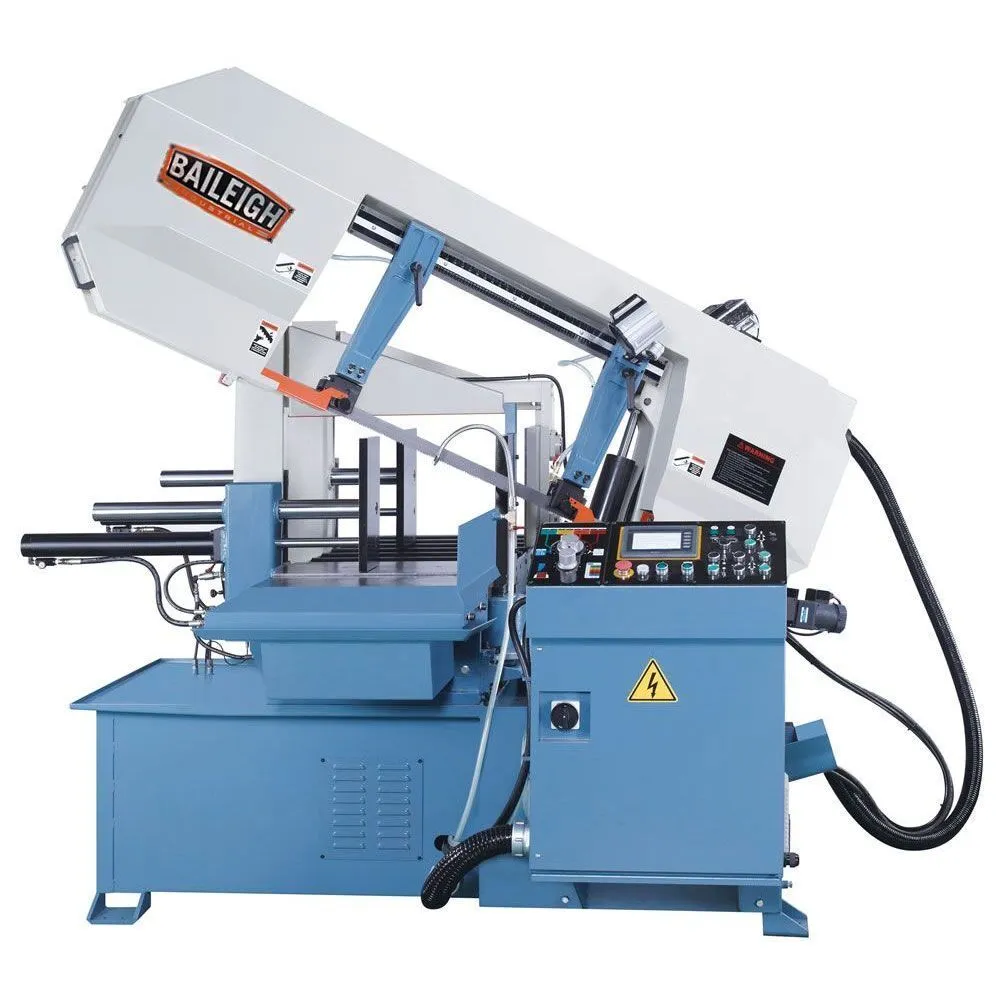

The Baileigh BS-24A 3-phase automatic band saw saves you time and money. The hydraulic clamp and feed will speed up production.18 inch round capacity at 90°. Delta inverter drives a powerful 5 hp motor. Runs on 220-volt 3-phase power.
| Capacity Round | 18 x 15 in. (90° x 45°) | 18 x 15 in. (90° x 45°) |
| Capacity Square | 18 x 15 in. (90° x 45°) | 18 x 15 in. (90° x 45°) |
| Capacity Rectangular | 15 x 24 in. (90° x 45°) | 15 x 24 in. (90° x 45°) |
| Blade Motor | 5 HP | 5 HP |
| Blade Guide | Carbide x Roller | Carbide x Roller |
| Blade Speed | 65 – 279 fpm (Variable Speed) | 65 – 279 fpm (Variable Speed) |
| Power | Manual | Manual |
| Hydraulic Motor | 1 HP | 1 HP |
| Return | Hydraulic | Hydraulic |
| Miter Adjustment | Swivel Head | Swivel Head |
| Miter Angle | 0 – 45° | 0 – 45° |
| Chip Removal | Hydraulic Auger | Hydraulic Auger |
| Table Height | 32.3" | 820.42 mm |
| Material Clamping Bundling | Hydraulic | Hydraulic |
| Material Feed | Hydraulic | Hydraulic |
| Descent Control | Pressure Assist Hydraulic | Pressure Assist Hydraulic |
| Country of Manufacture | Taiwan | Taiwan |
| Shipping Dimensions | 109 x 90 x 77 in. | 109 x 90 x 77 in. |
| Shipping Weight | 3,900 lb | 1,769 kg |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
