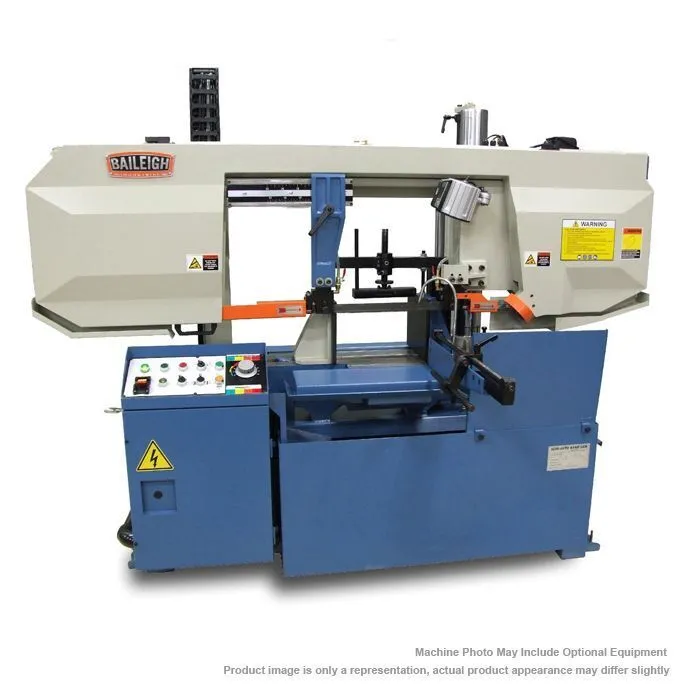

The Baileigh BS-360SA semi-automatic horizontal band saw will save you time with its efficient hydraulic system. The cast iron bow and steel frame maintain accuracy. Huge capacity of 14” round and 14” x 22” rectangle. 66 to 279 fpm variable blade speed. Robust 5 hp motor runs on 220-volt 3-phase power.
| Cutting Capacity Round | 14.17 in. | 14.17 in. |
| Cutting Capacity Square | 14.17 in. | 14.17 in. |
| Cutting Capacity Rectangle | 14.17 x 22 in. | 14.17 x 22 in. |
| Blade Guide | Carbide x Roller | Carbide x Roller |
| Blade Speed | 66 – 279 fpm (Variable Speed) | 66 – 279 fpm (Variable Speed) |
| Blade Motor | 5 HP | 5 HP |
| Power | 220v, 3-Phase | 220v, 3-Phase |
| Bed/Table Height | 29.21" | 741.93 mm |
| Return | Hydraulic | Hydraulic |
| Descent Control | Pressure Assist Hydraulic | Pressure Assist Hydraulic |
| Drive | Belt x Pulley | Belt x Pulley |
| Shipping Dimensions | 110 x 45 x 78 in. | 110 x 45 x 78 in. |
| Shipping Weight | 3,100 lb | 1,406.1 kg |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
