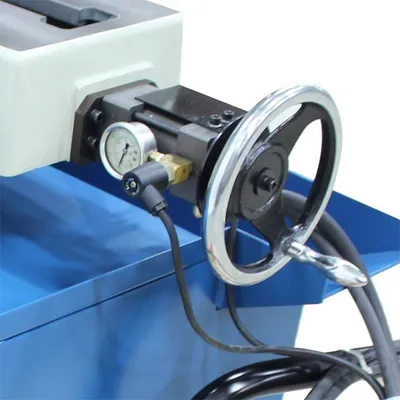

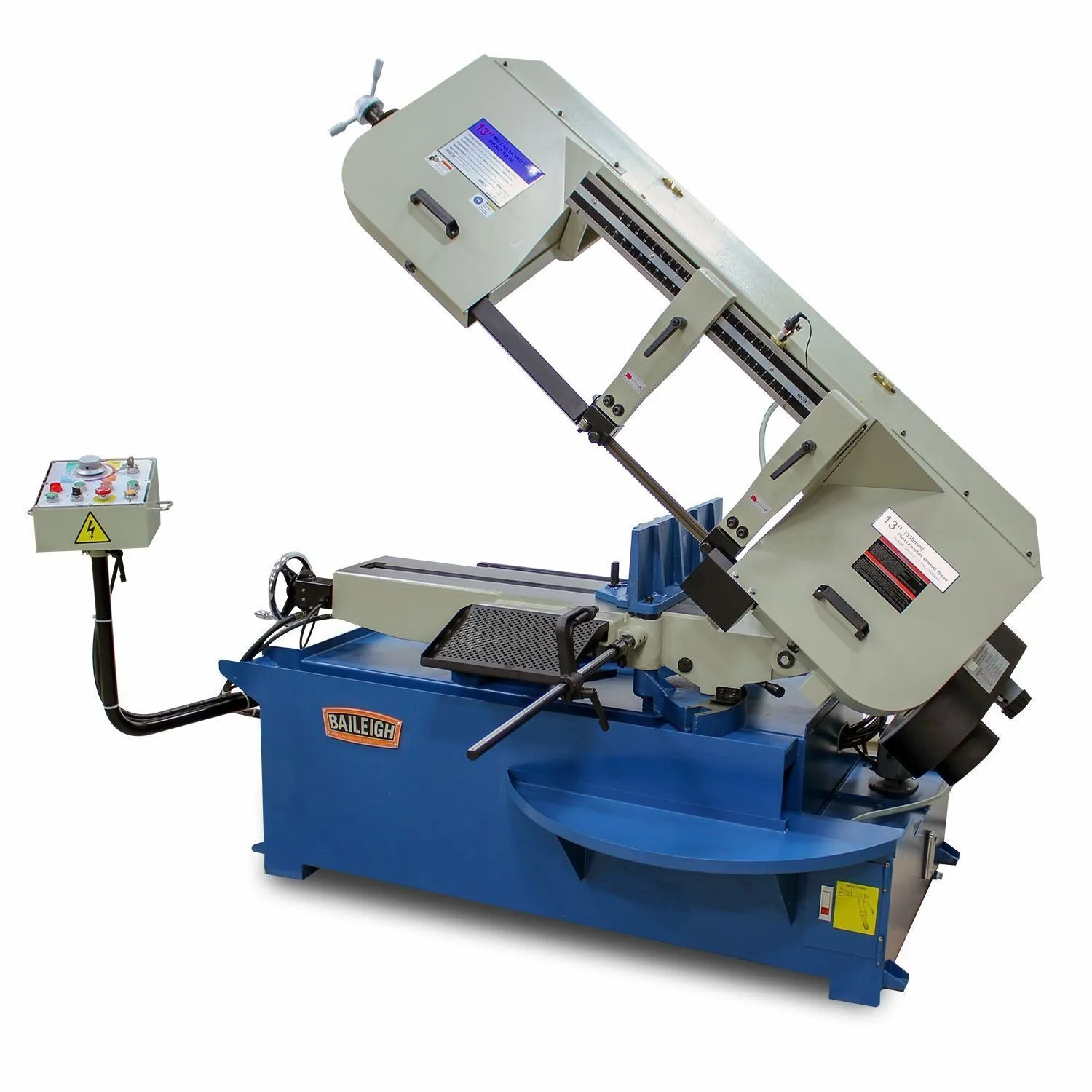

The Baileigh BS-330SA horizontal band saw will improve your efficiency with a hydraulic vise, downfeed, and bow return. Maximum capacity of 13” OD round at 90°. Variable blade speed ranges from 82 to 270 fpm. 3 hp motor runs on 220-volt three-phase power.
| Cutting Capacity Rectangle | 13 x 18.9 x 11 x 10.04 in. (90 x 45 x 45L) | 13 x 18.9 x 11 x 10.04 in. (90 x 45 x 45L) |
| Round at 90° | 13" | 330.2 mm |
| Square at 90° | 13 in. | 13 in. |
| Round at 45° | 8.86" | 225.04 mm |
| Square at 45° | 8.86 in. | 8.86 in. |
| Blade Guide | Carbide x Roller | Carbide x Roller |
| Blade Speed | 82 – 270 fpm | 82 – 270 fpm |
| Blade Motor | 3 HP | 3 HP |
| Power | 220v, 3-Phase | 220v, 3-Phase |
| Bed/Table Height | 30.5" | 774.7 mm |
| Miter Adjustment | Swivel Head and Vise | Swivel Head and Vise |
| Miter Angle | 0 – 45° | 0 – 45° |
| Return | Hydraulic | Hydraulic |
| Descent Control | Pressure Assist Hydraulic | Pressure Assist Hydraulic |
| Drive | Belt x Pulley | Belt x Pulley |
| Dimensions | 90 x 37 x 61 in. | 90 x 37 x 61 in. |
| Weight | 1,800 lbs. | 1,800 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
